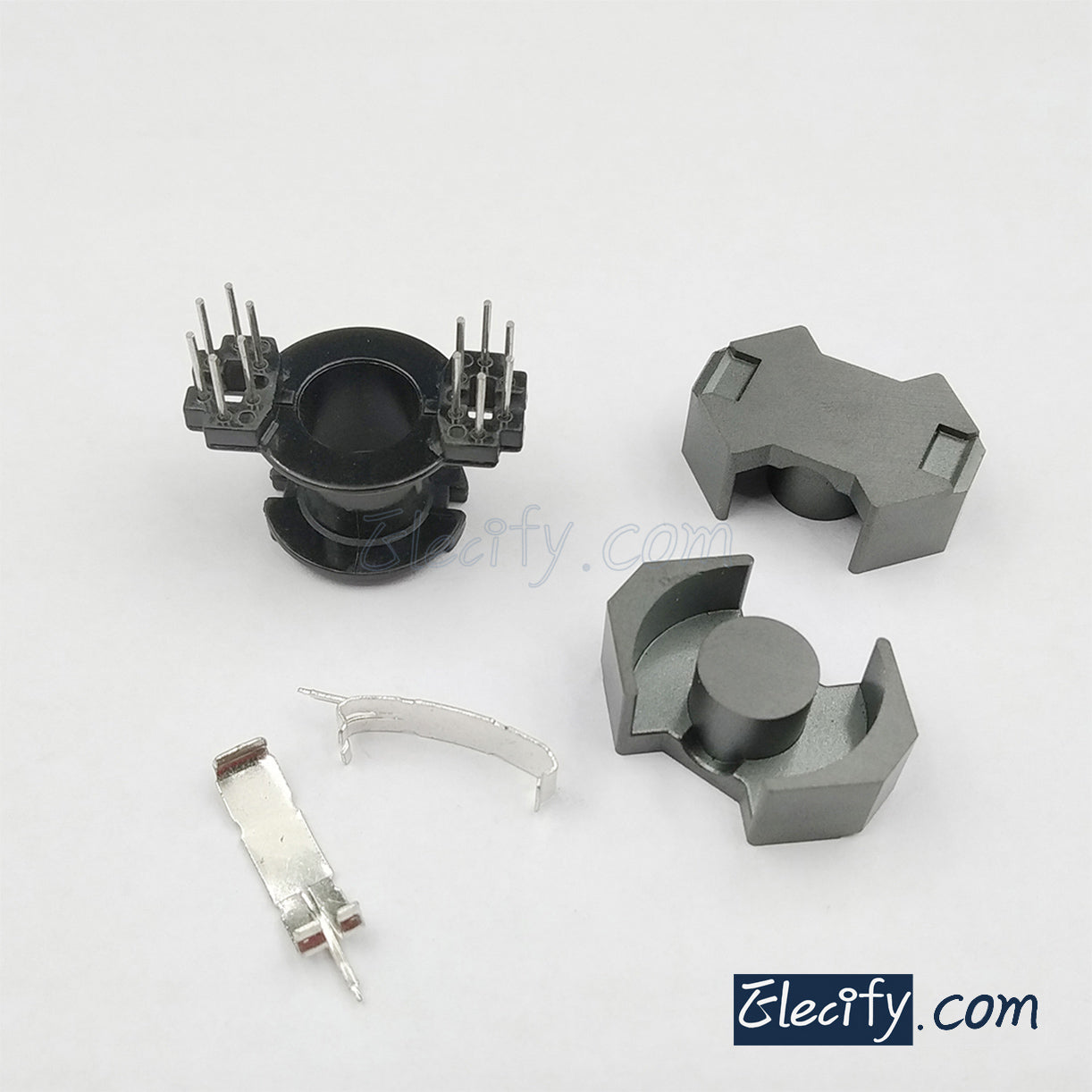

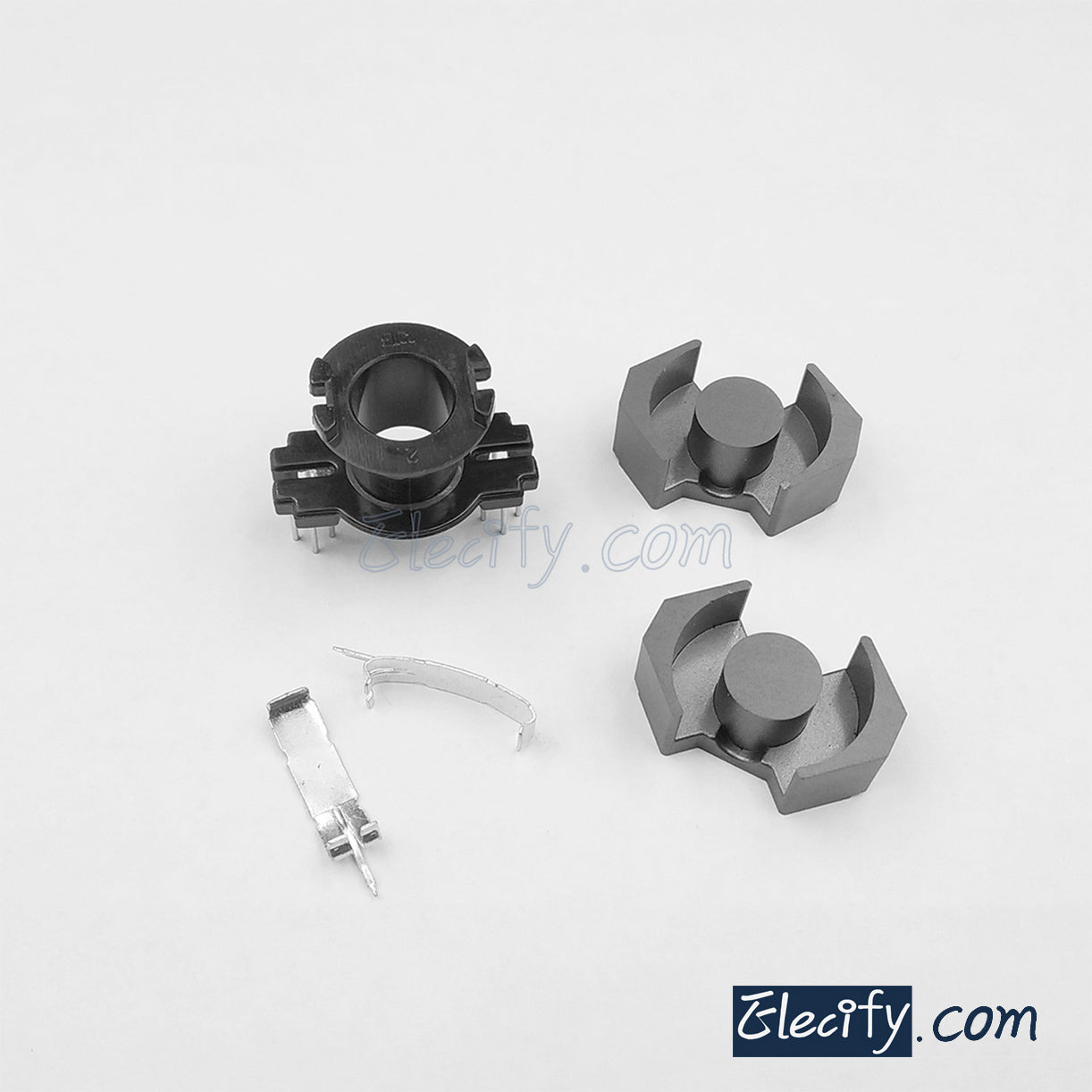

2set RM8 6+6pins Ferrite Cores bobbin,transformer core,inductor coil 22.7mm
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
RM8 6+6pins Ferrite Cores
AL=3300±25%

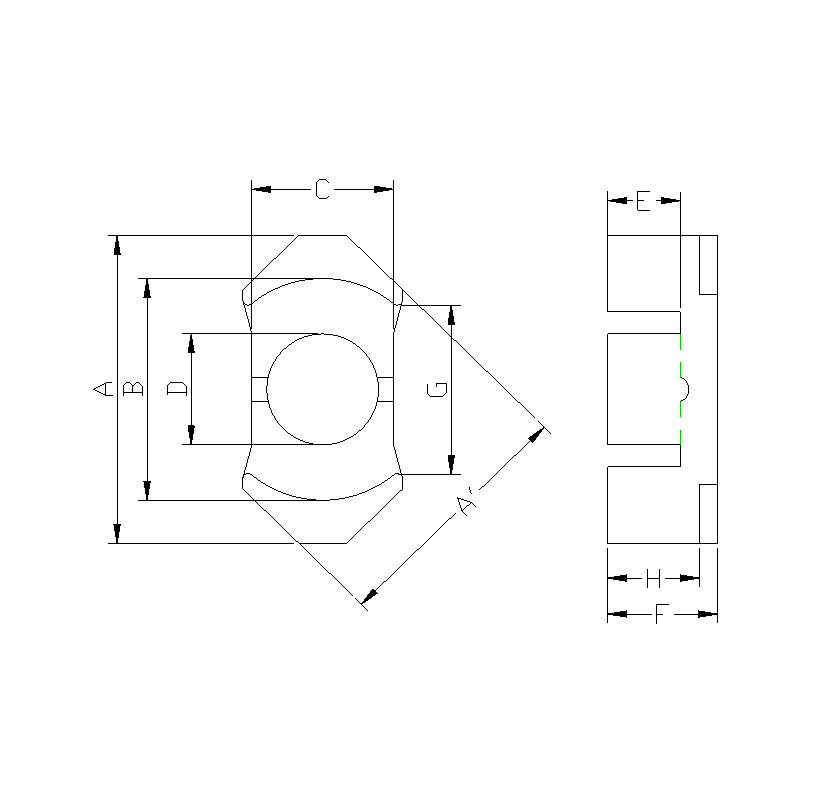

core size(mm):
A' : 19.3±0.4
A: 22.7±0.5
B: 17.3±0.3
C: 10.7±0.3
D: 8.4±0.2
E: 5.5±0.25
F: 11.4±0.25
Gmin: 9.5
H: 14.2±0.4
C1: 0.604
Le: 38.4
Ae: 63
Ve: 2440.0
