RM5 3+3pins Ferrite Cores bobbin,transformer core,inductor coil

  • $0.32
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

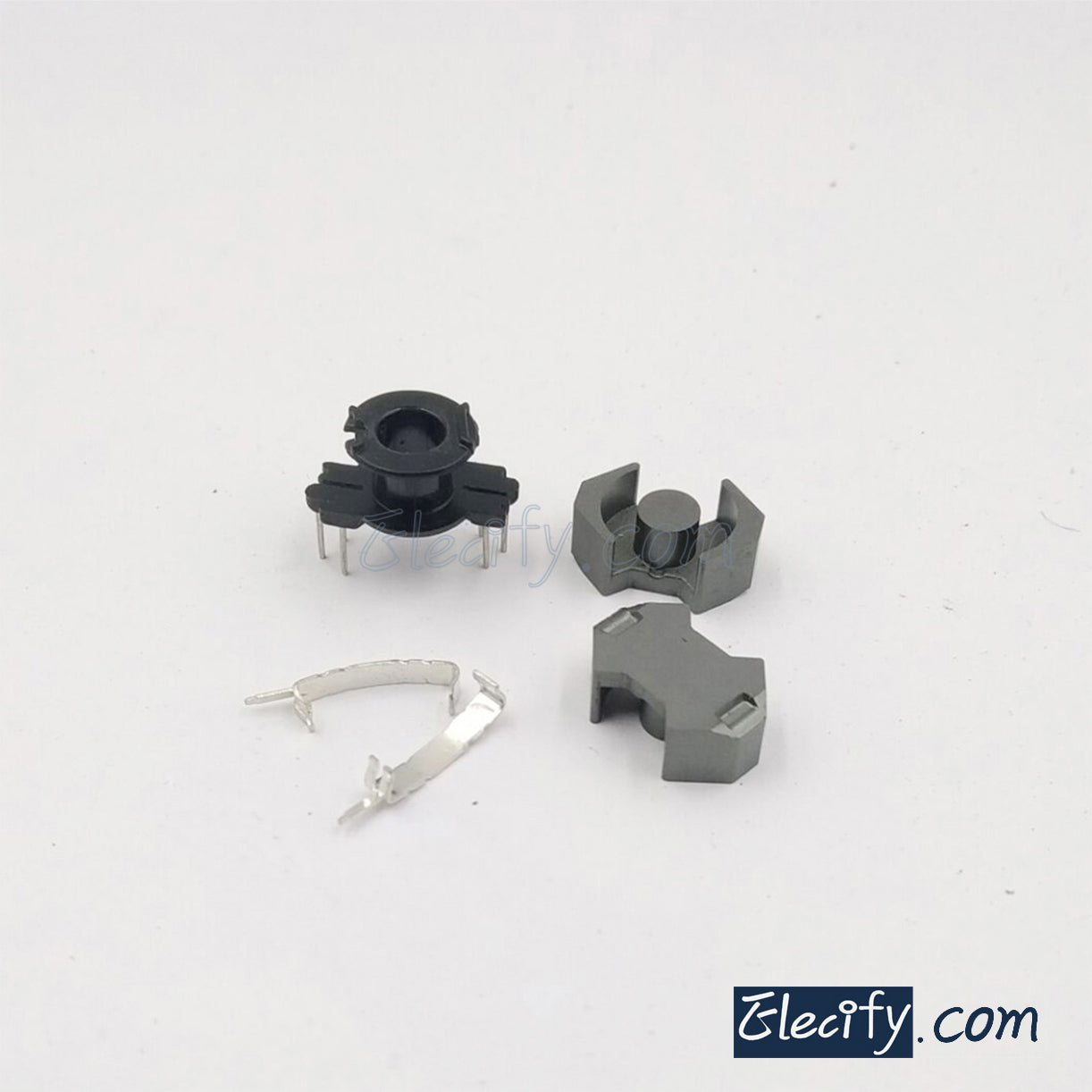

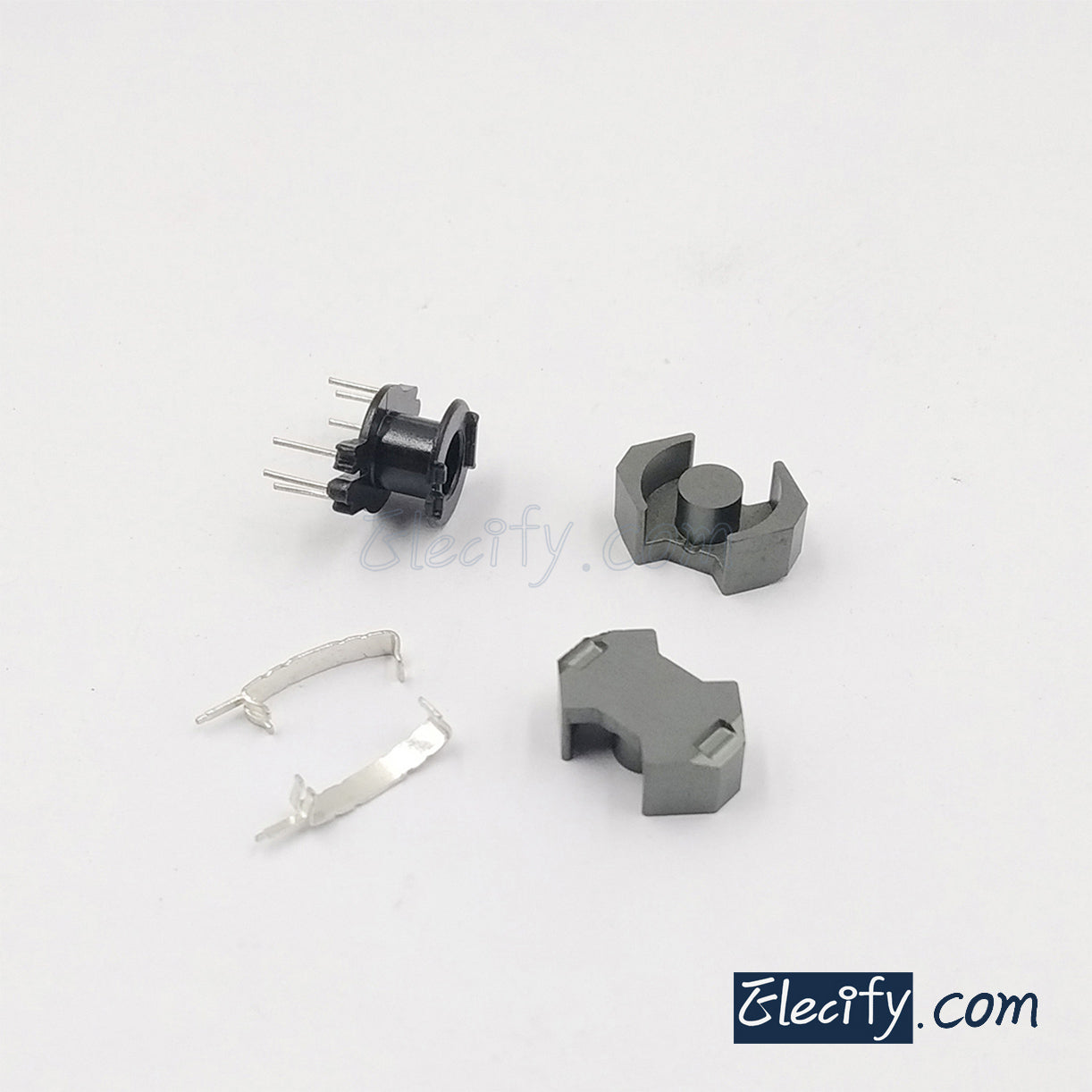

RM5 3+3pins Ferrite Cores

AL=1700±25%

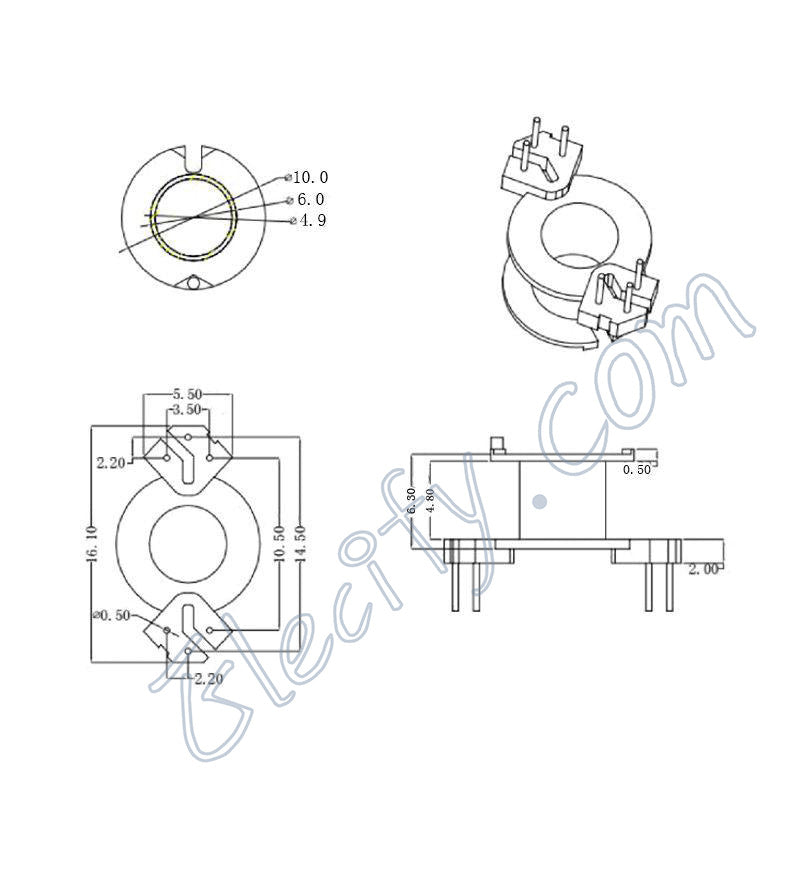

Bobbin size: the 4th picture

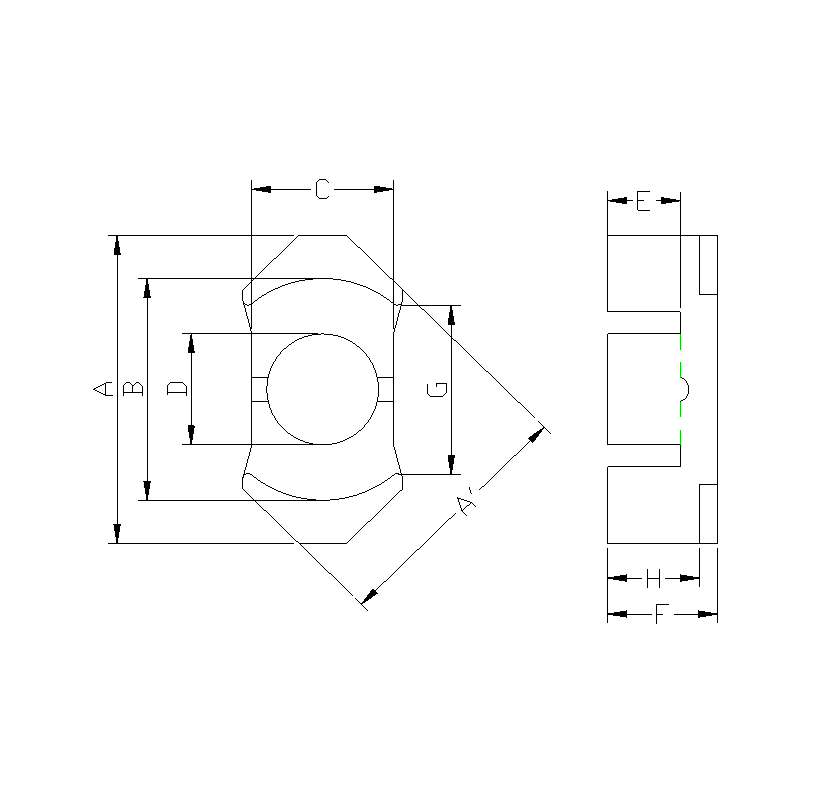

 core size(mm):
   A' : 12±0.3
   A: 14.6±0.4
   B: 10.4±0.3
   C: 6.6±0.2
   D: 4.8±0.1
   E: 3.25±0.25
   F: 5.2±0.1
   G: 6min
   H: 4.4±0.3

   C1: 0.935
   Le: 23.2
   Ae: 24.8
   Ve: 574.0
