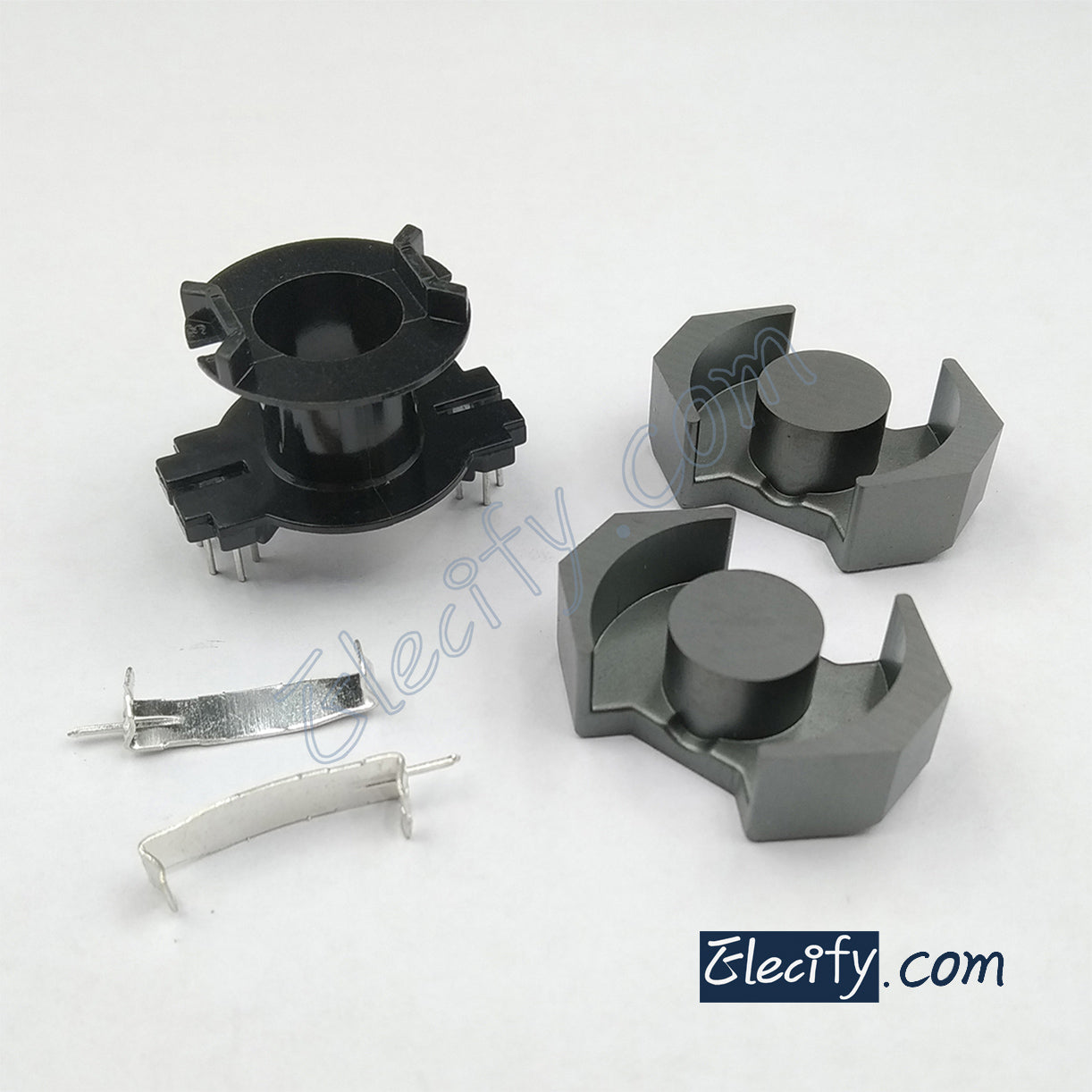

2set RM10 6+6pins Ferrite Cores bobbin, transformer core, inductor coil 27.8mm

  • $2.40
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

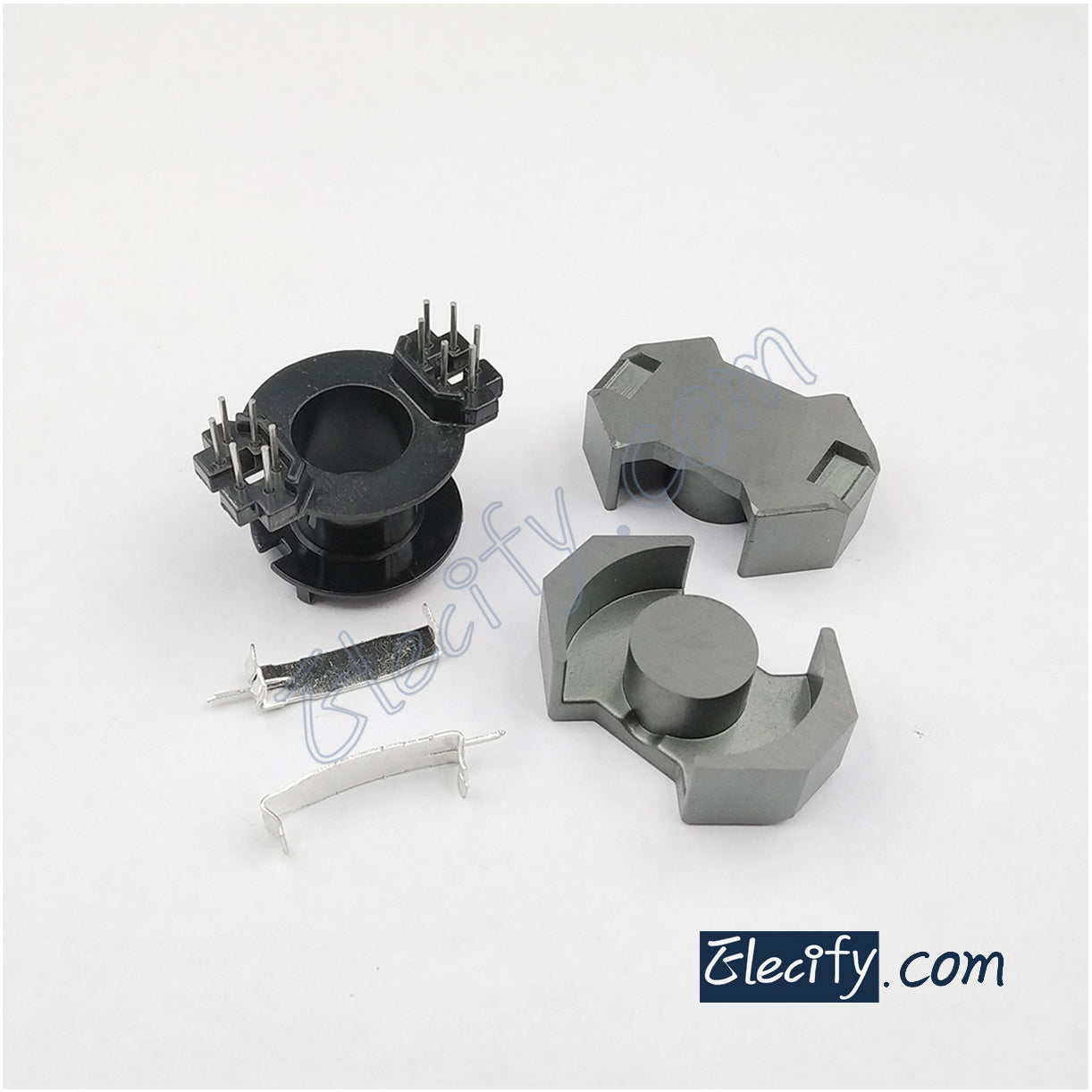

RM10 6+6pins Ferrite Cores

AL=3950±25%
 core size(mm):
   A' : 24.0±0.6
   A: 27.8±0.7
   B: 21.6±0.5
   C: 13.2±0.3
   D: 10.7±0.2
   E: 6.3±0.25
   F: 9.3±0.25
   Gmin: 10.9
   H: 16.2±0.3


   C1: 0.462
   Le: 44.6
   Ae: 96.6
   Ve: 4310.0
