PC40 PQ32 6+6pins Ferrite Cores and bobbin

  • $0.55
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

PQ3225 6+6pins Ferrite Cores

AL=5000±25% nH/N2
C1=0.43mm^-1
Le=66.59mm
Ae=155.0mm^2
Ve=10320mm^3



Bobbin size: please check the 4th picture

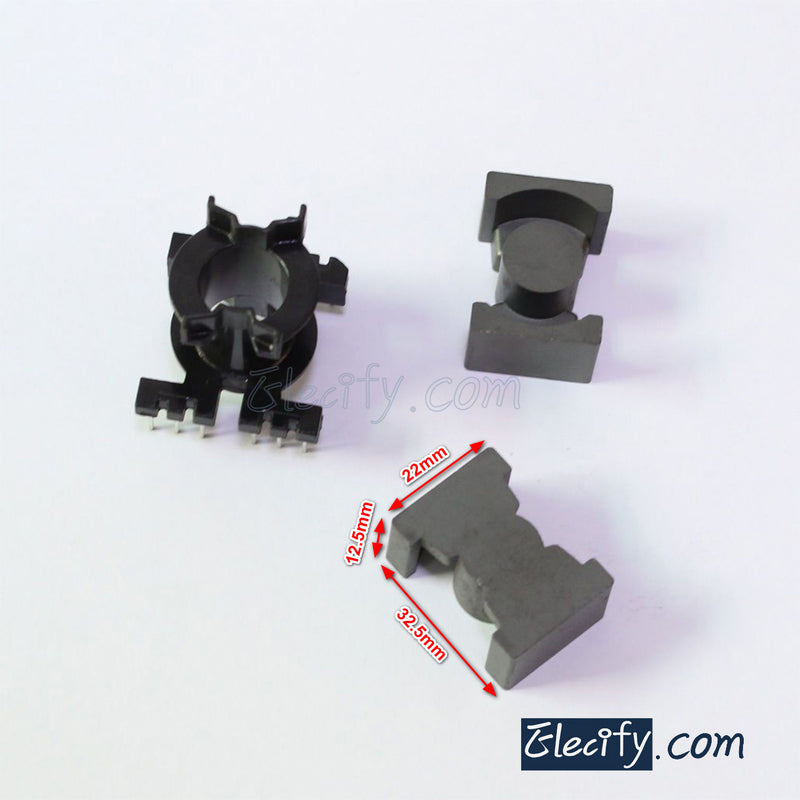

 core size(mm): (the 3rd picture)
   A: 32.5±0.5
   B: 12.5±0.4
   C: 22.0±0.5
   D: 13.4±0.3
   E: 26.0min
   F: 8.4±0.3

each set =2 ferrite halves + 1 bobbin
