PC40 ETD29 7+7pins Ferrite Cores and bobbin, transformer core,inductor coil

  • $1.70
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

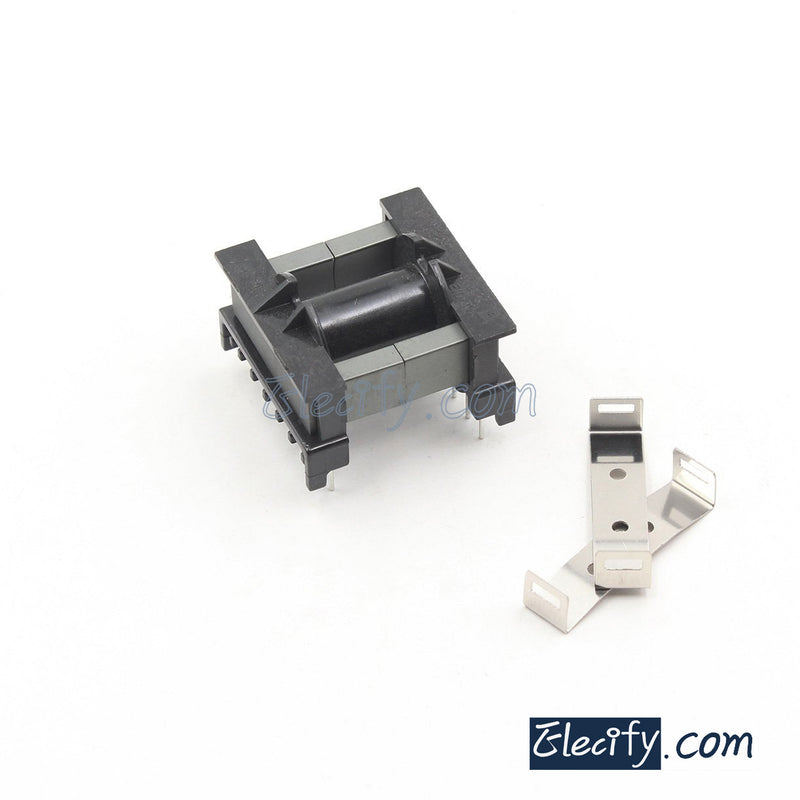

ETD29 7+7pins Ferrite Cores

AL=2600±25%

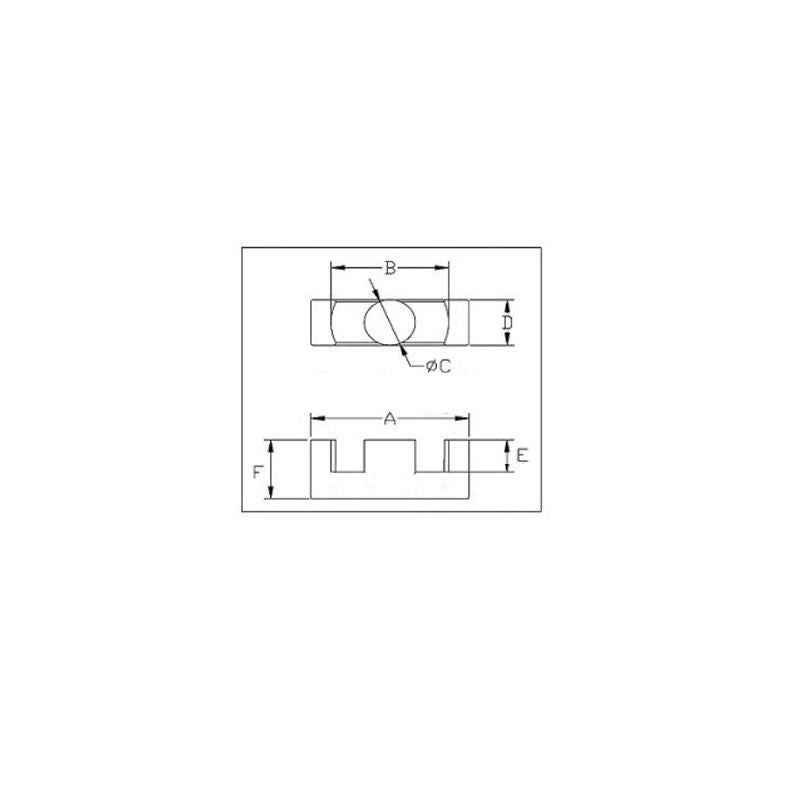

 core size(mm): (the 2nd picture)
   A: 29.8±0.60
   B: 22.0min
   C: 9.50±0.30
   D: 9.50±0.30
   E: 11.2±0.30
   F: 15.80±0.30


   C1 : 1
   Le : 71.55
   Ae: 70.84
   Ve: 5850
