EC53 9+9pins PC40 Ferrite Cores and bobbin

  • $2.45
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

EC53 9+9pins Ferrite Cores

AL=6400±25%
 core size(mm): (the third picture)
   A: 53.4±1.0
   B: 38.7min
   C: 20.3±0.6
   D: 21.5±0.3
   E: 16.5±0.4
   F: 23.2±0.4

Material: PC40

C1: 0.363mm^-1
Le: 114mm
Ae: 314mm^2
Le: 36043mm^3

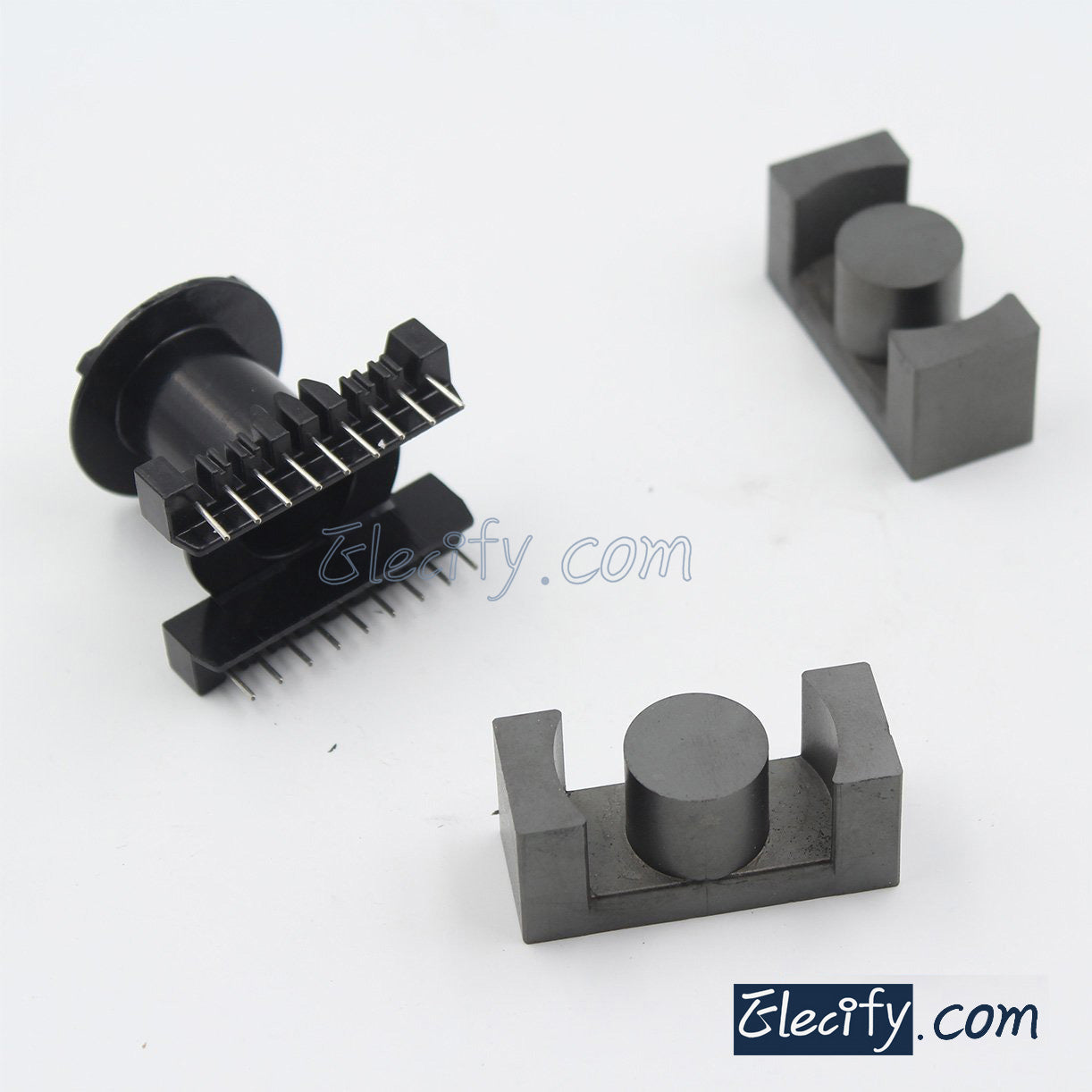

 each set =2 ferrite halves + 1 bobbin
