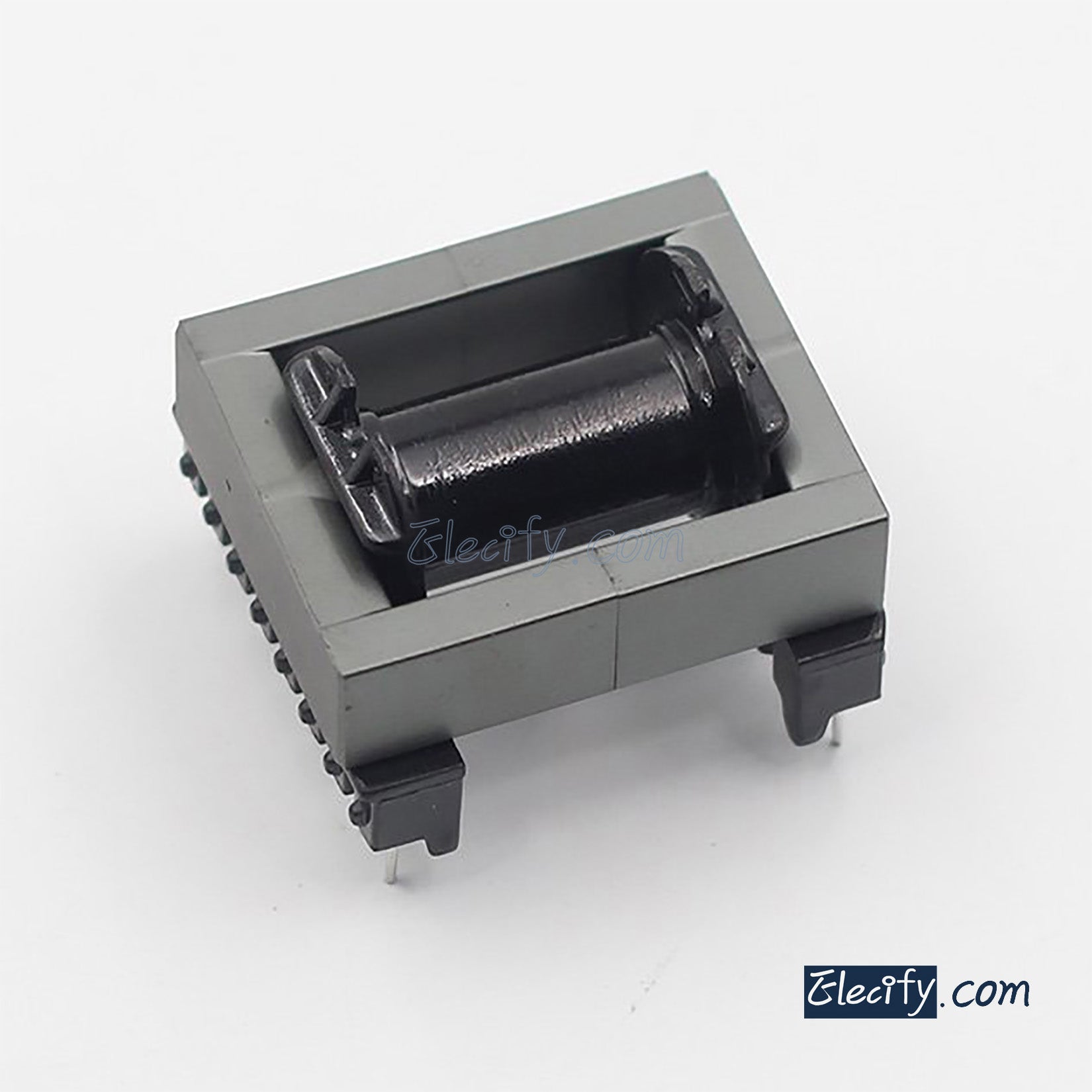

1set PC40 EC35 8+8pins Ferrite Cores and bobbin 35mm
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
EC35 8+8pins Ferrite Cores
AL=2700±25%
core size(mm): (the third picture)
A: 35.3±0.7
B: 21.2±0.3
C: 11.3±0.3
D: 11.2±0.3
E: 25.6min
F: 15.2±0.3
core size(mm): (the third picture)
A: 35.3±0.7
B: 21.2±0.3
C: 11.3±0.3
D: 11.2±0.3
E: 25.6min
F: 15.2±0.3
C1: 0.918mm^-1
Le: 92.05mm
Ae: 100.23mm^2
Ve: 11165mm^3
