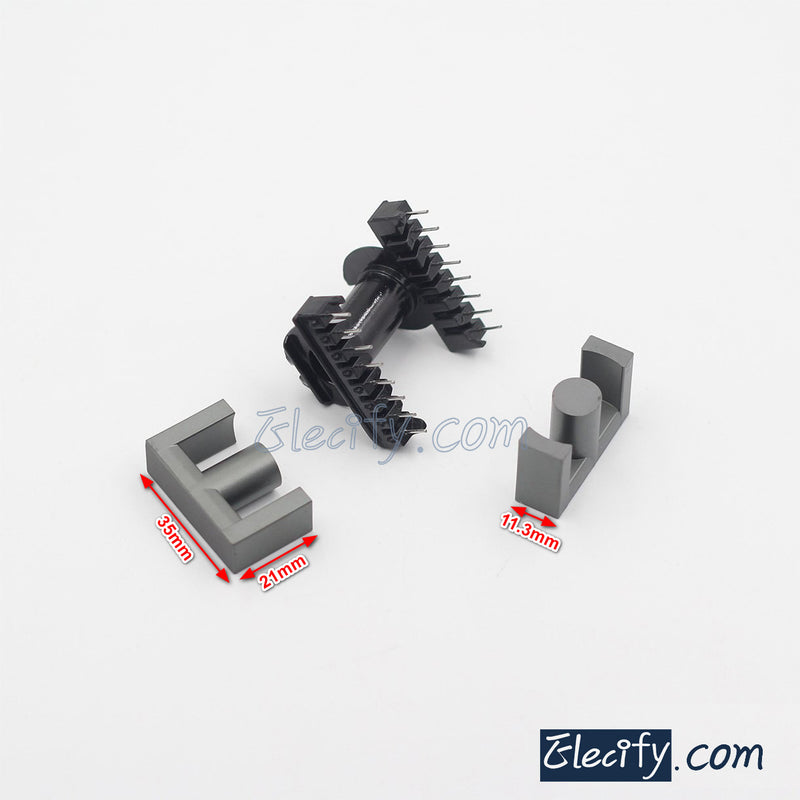

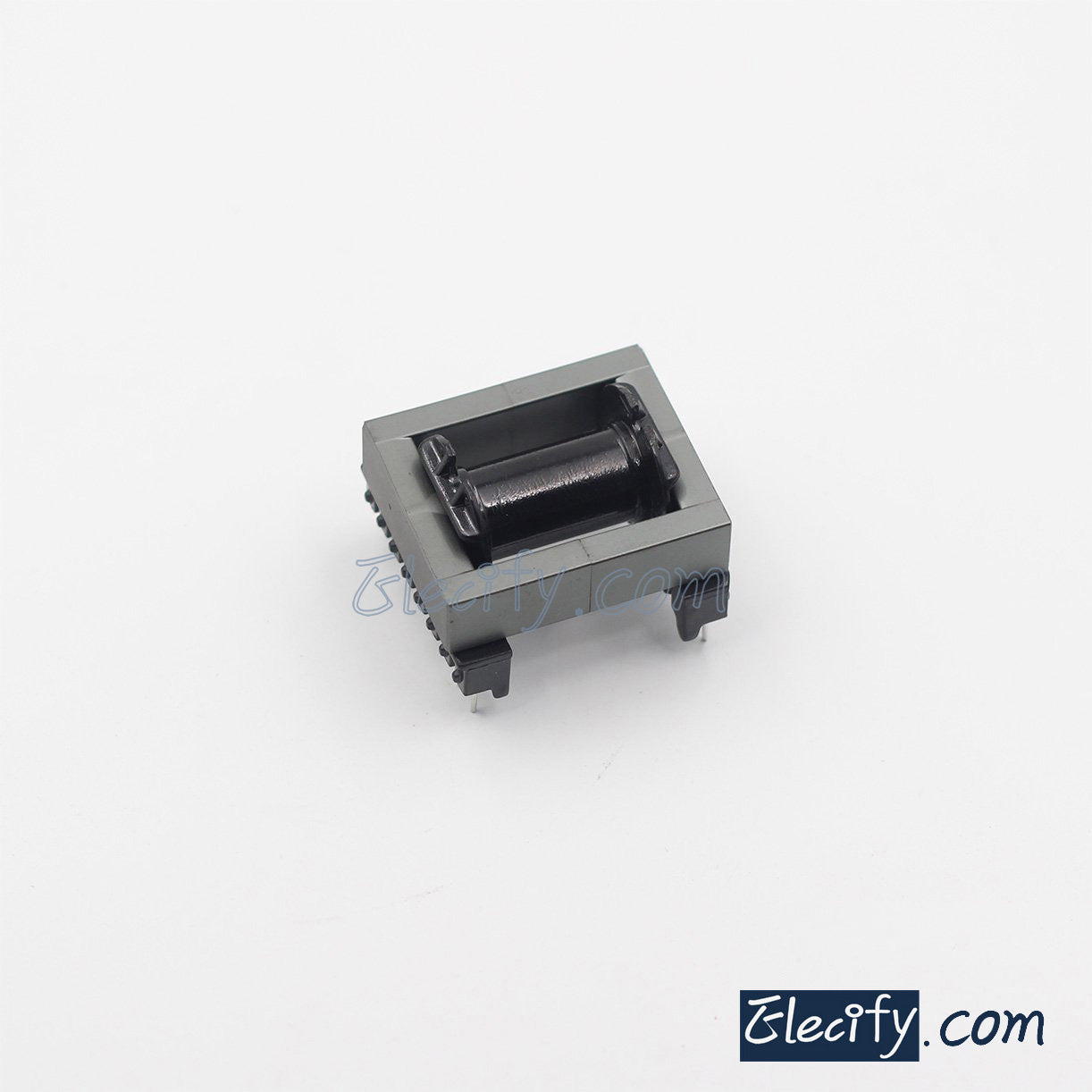

PC40 EC35 8+8pins Ferrite Cores and bobbin

  • $0.95
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

EC35 8+8pins Ferrite Cores

AL=2700±25%

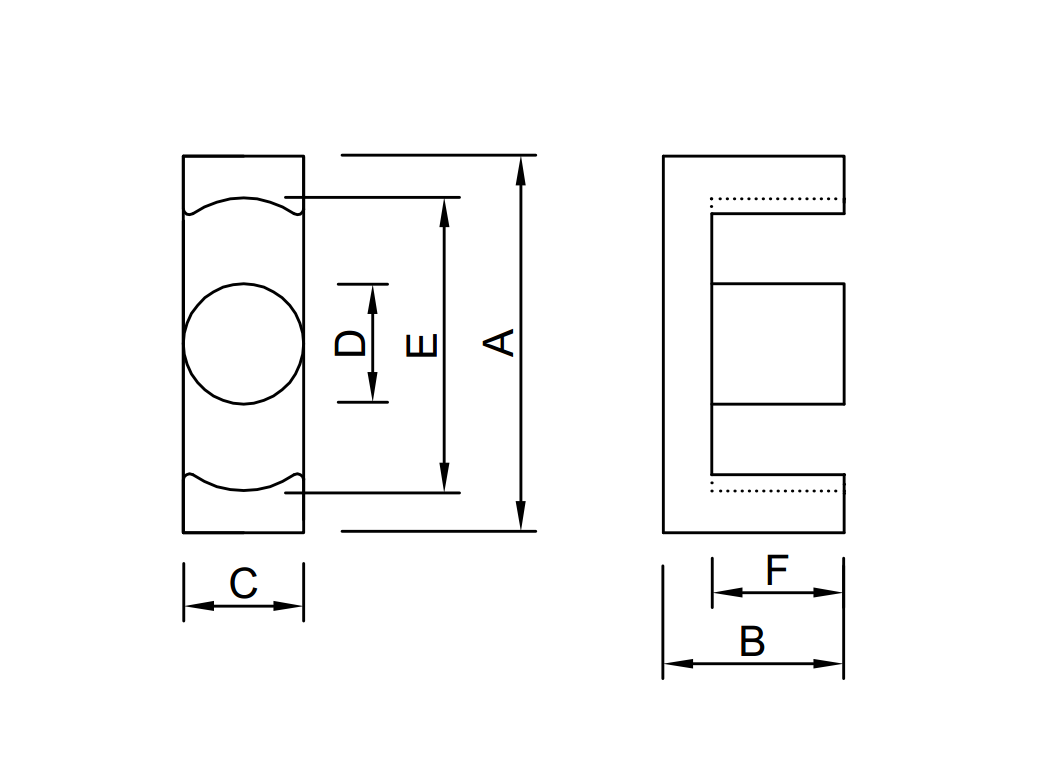

 core size(mm): (the third picture)
   A: 35.3±0.7
   B: 21.2±0.3
   C: 11.3±0.3
   D: 11.2±0.3
   E: 25.6min
   F: 15.2±0.3

  C1: 0.918mm^-1
  Le: 92.05mm
  Ae: 100.23mm^2
  Ve: 11165mm^3
