EPC13 5+5pins Ferrite Cores bobbin, transformer core, inductor coil

  • $0.20
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

EPC13 5+5pins Ferrite Cores

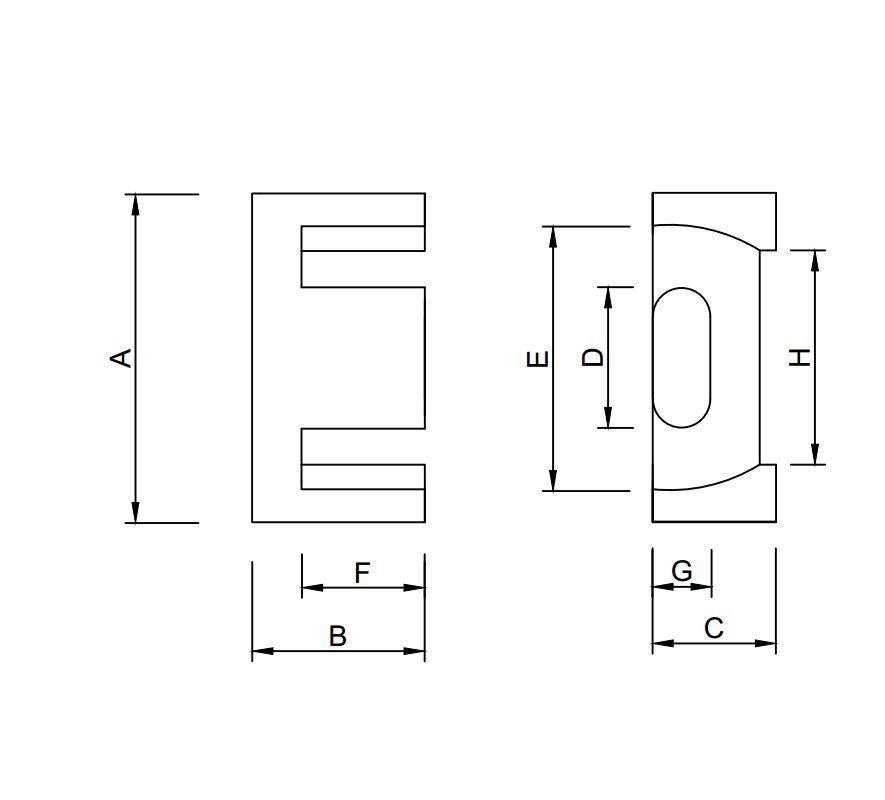

Bobbin size: please check the 3rd picture core size(mm): (the 2nd picture)
   A: 13.3±0.2
   B: 6.6±0.2
   C: 4.7±0.2
   D: 5.5±0.2
   E: 10.2min
   F: 4.6±0.2
   G: 2.0±0.2
   H: 8.30min

   Le: 29.85mm
   Ae: 12.06mm^2
   Ve: 361mm^3


   Al: 850±25%

   Bs: 510mT (25℃), 390mT (100℃)

   Br: 100mT (25℃)

   Coercivity (Hc) : 14A/m (25℃)

   Curie Temp. (Tc): 220℃

   Electrical resistivity : 6.5Ω/m

each set =2 ferrite halves + 1 bobbin
