GU36 POT Ferrite Cores, transformer core, magnetic tank

  • $1.20
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

1set GU36 Ferrite Cores

AL=7300±25%(nH/N^2)

core size(mm): (the third picture)
   A: 35.6±0.6
   B: 30.5±0.5
   C: 16.0±0.4
   D: 5.5±0.2
   E: 7.4±0.2
   F: 11.0±0.1
   G: 5.4±0.6

C1:  0.26
Le: 53.2
Ae: 202.0
Ve: 10700

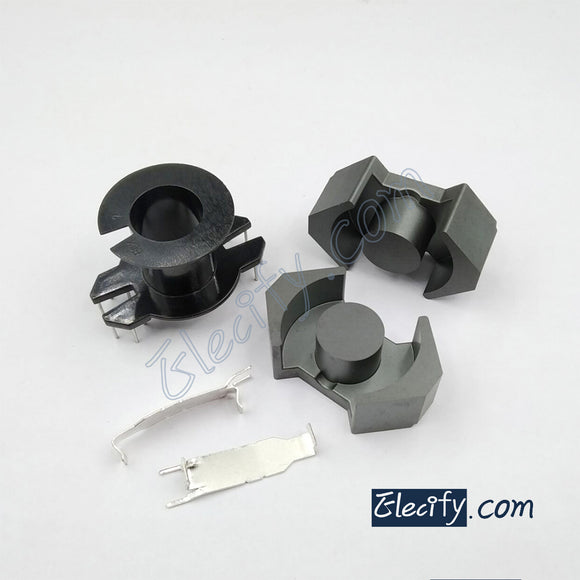

1SET =2 ferrite halves + 1 bobbin
