GU30 POT Ferrite Cores,transformer core,magnetic tank

  • $0.85
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

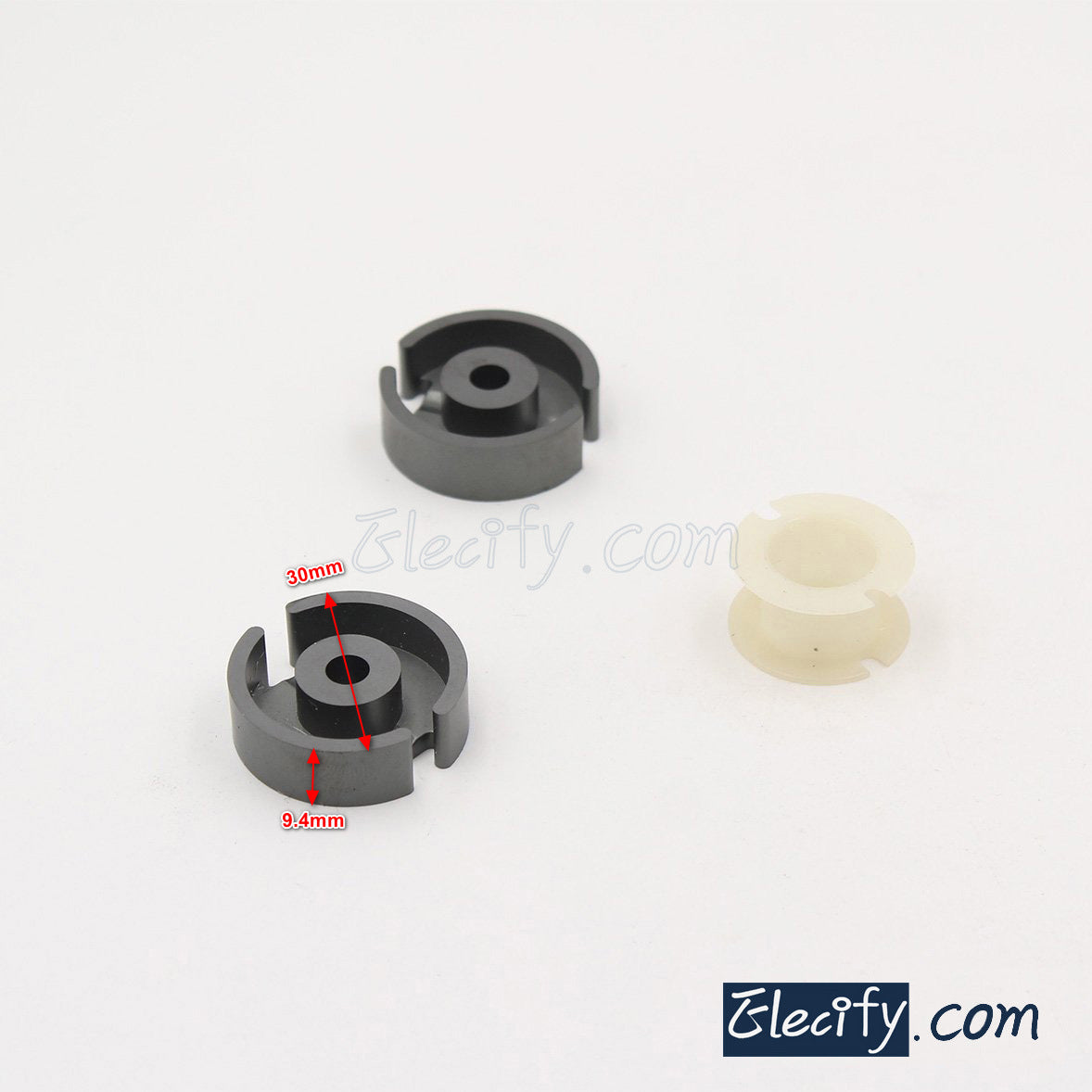

GU30 Ferrite Cores

AL=5700±25%(nH/N^2)

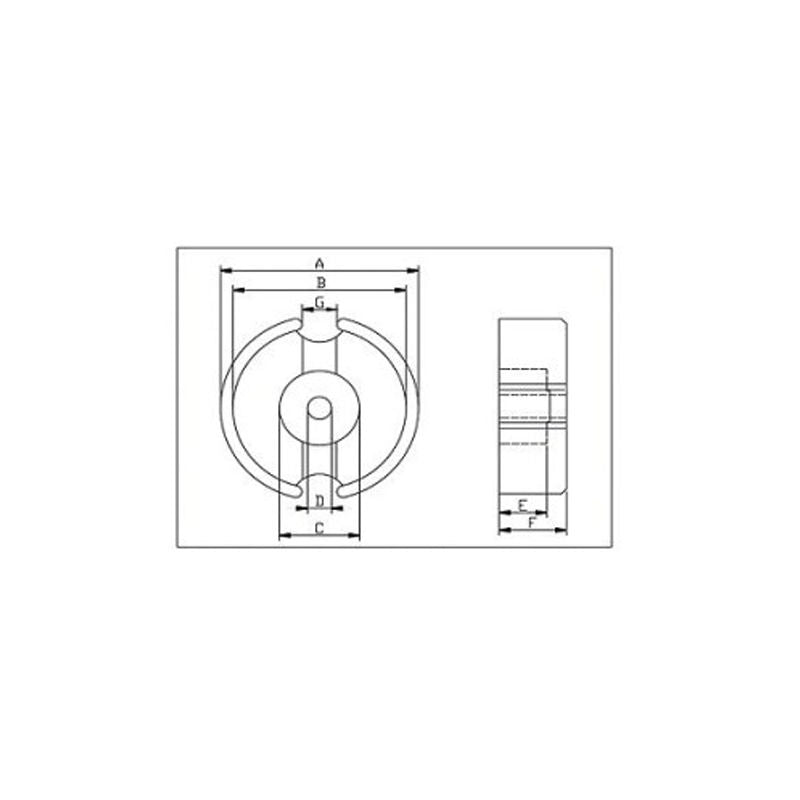

"E" core size(mm): (the third picture)
   A: 30.0±0.5
   B: 25.4±0.4
   C: 13.3±0.2
   D: 5.5±0.15
   E: 6.6±0.1
   F: 9.45±0.1
   G: 4.3±0.6

each set =2 ferrite halves + 1 bobbin
