GU26 POT Ferrite Cores, transformer core, magnetic tank

  • $0.60
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

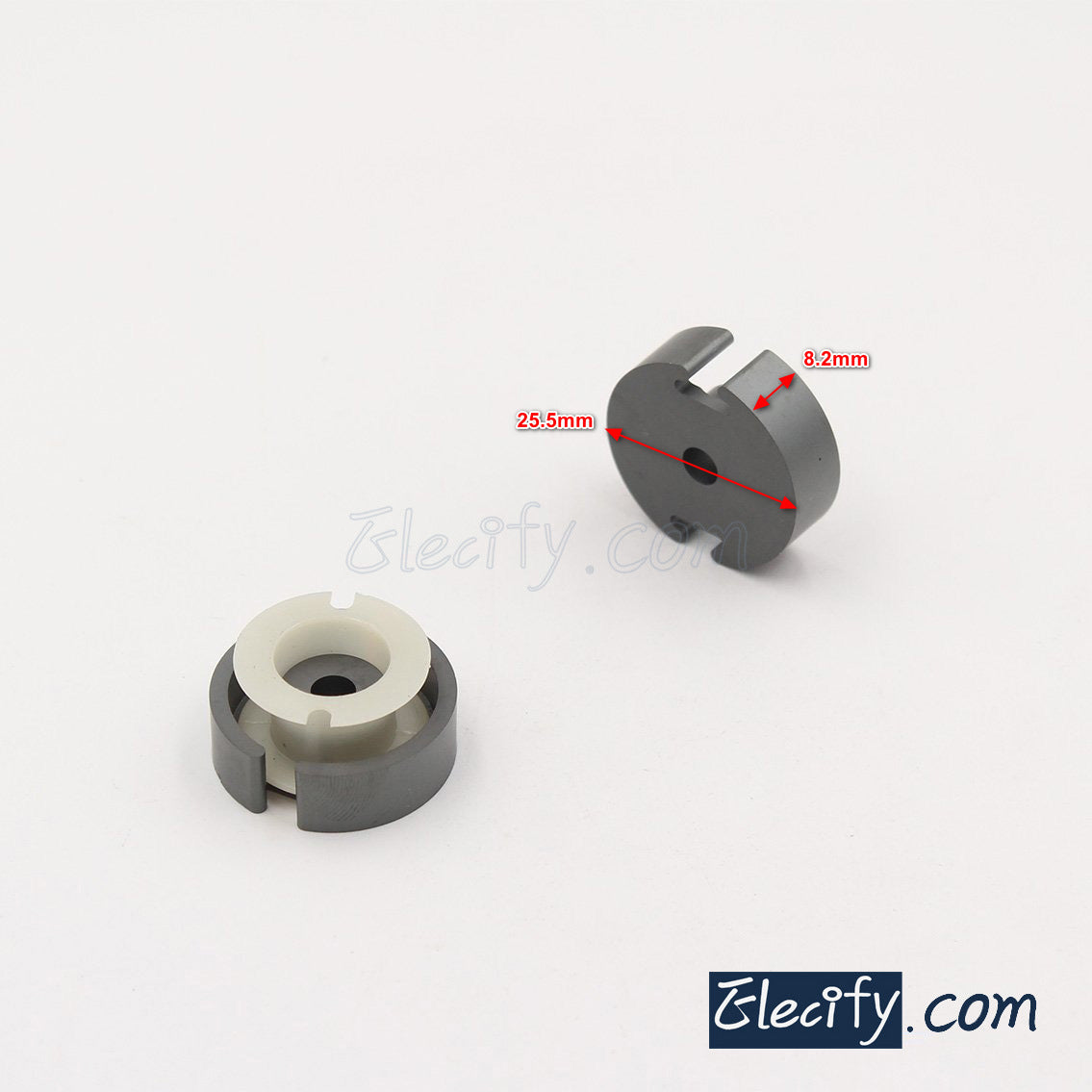

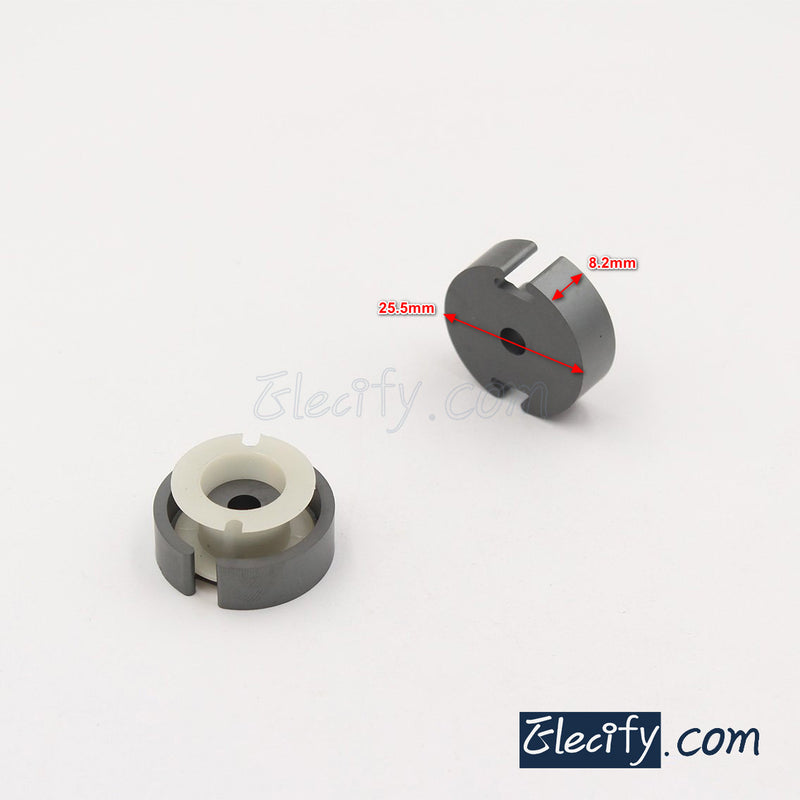

GU26 Ferrite Cores

AL=4600±25%(nH/N^2)

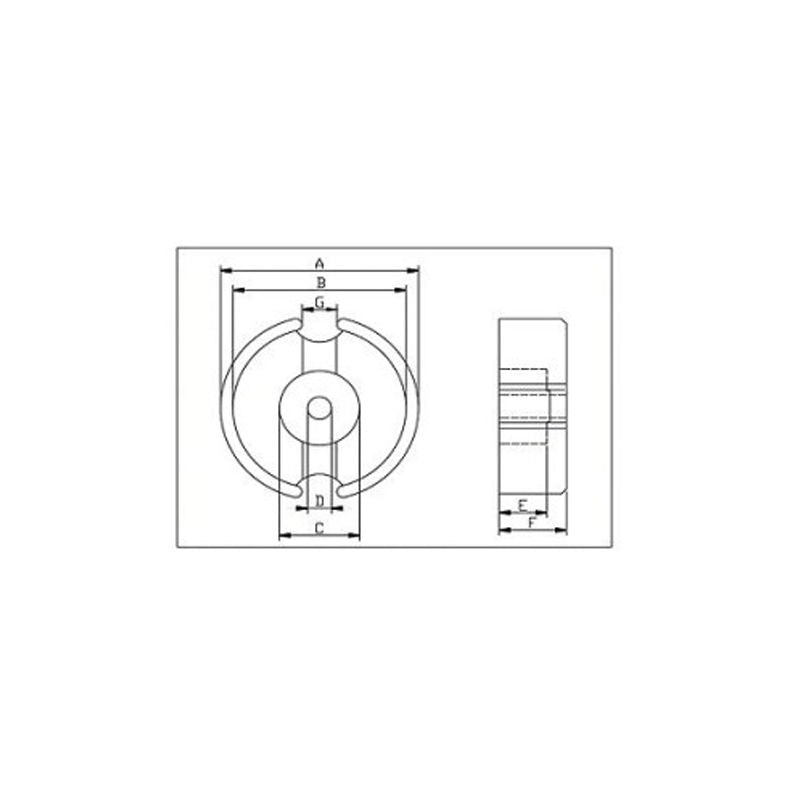

"E" core size(mm): (the third picture)
   A: 25.5±0.5
   B: 21.5±0.3
   C: 11.3±0.2
   D: 5.5±0.15
   E: 5.6±0.1
   F: 8.0±0.1
   G: 3.8±0.6

each set =2 ferrite halves + 1 bobbin
