1set EP17 4+4pins Ferrite Cores and bobbin, transformer core, inductor coil
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
EP17 4+4pins Ferrite Cores
AL=2200±25%

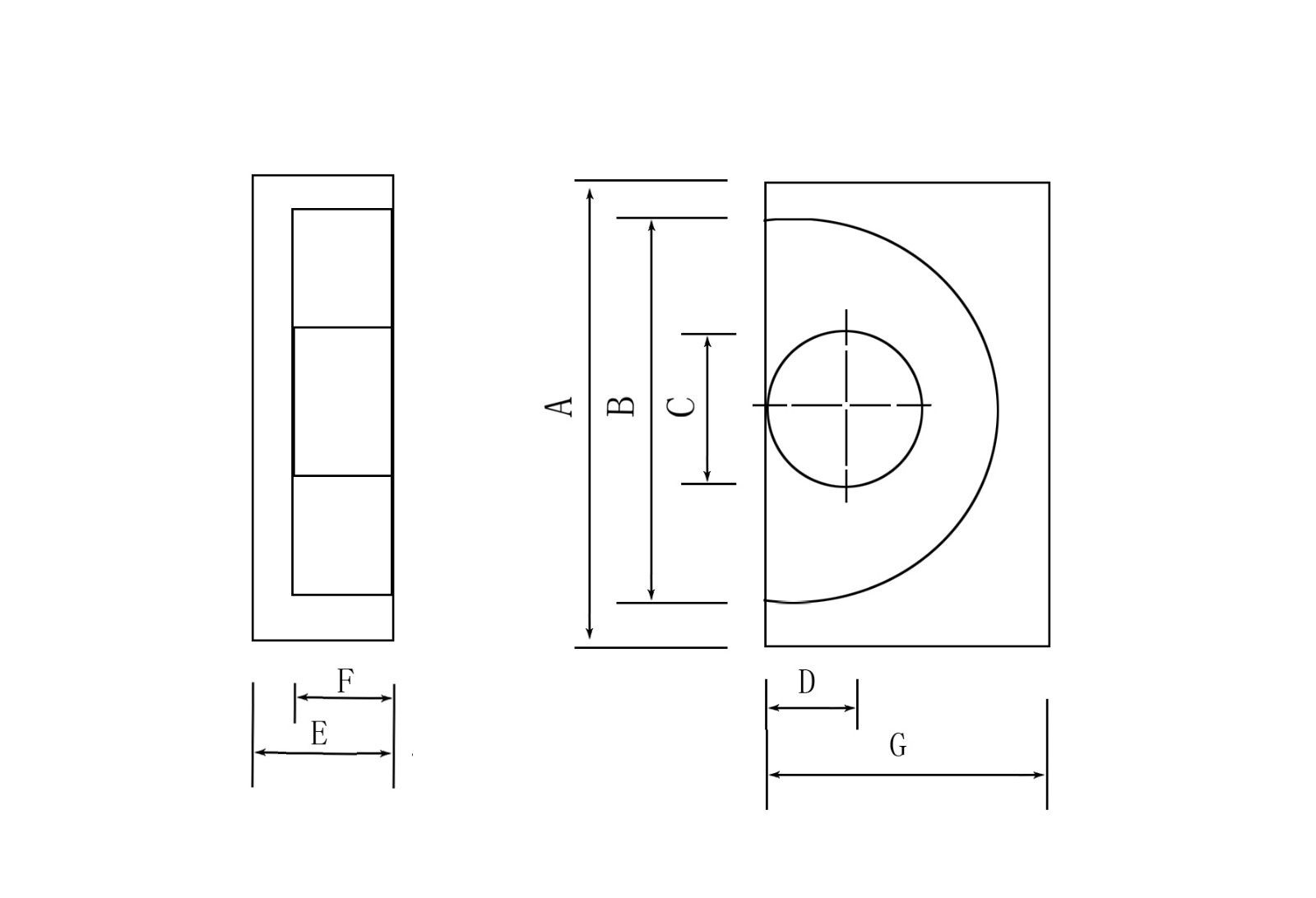

core size(mm): (the 2nd picture)
A:18.2±0.4
B:11.6min
C:5.8±0.3
D:3.3±0.2
E:8.7±0.2
F:5.8±0.3
G:11.0±0.3
each set =2 ferrite halves + 1 bobbin
core size(mm): (the 2nd picture)
A:18.2±0.4
B:11.6min
C:5.8±0.3
D:3.3±0.2
E:8.7±0.2
F:5.8±0.3
G:11.0±0.3
each set =2 ferrite halves + 1 bobbin
