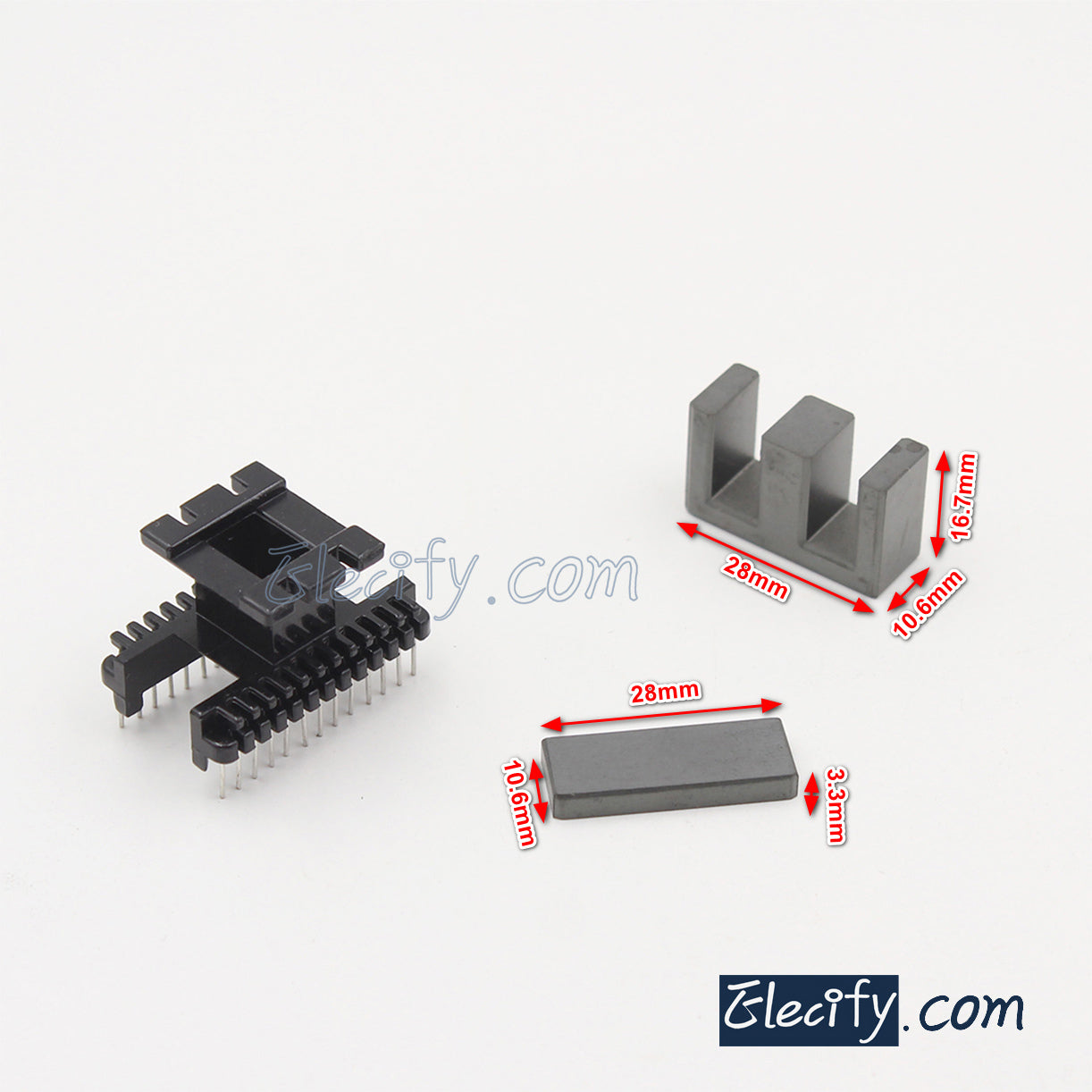

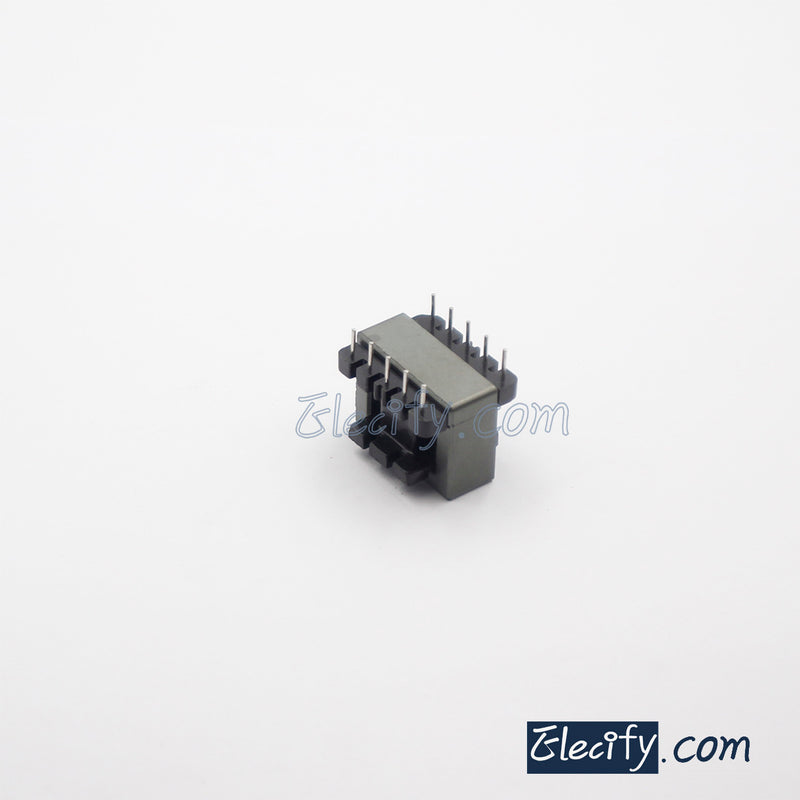

EI28 13+13pins 5+5pins PC40 Ferrite Cores and bobbin
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
EE30 5+5 6+6pins Ferrite Cores
AL=4000±25%

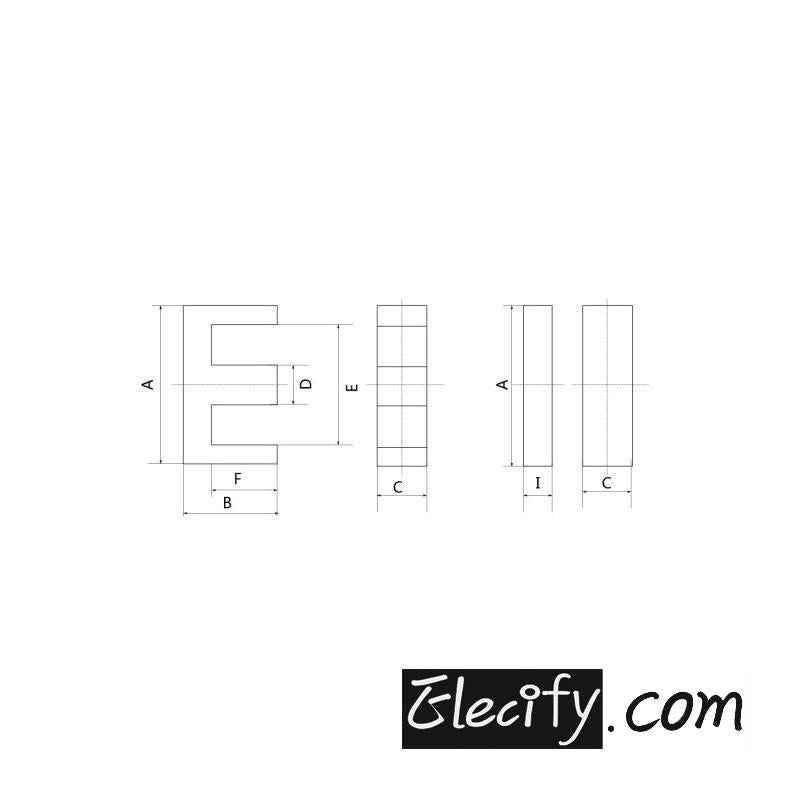

core size(mm): (the 3rd picture)
A: 30.0±0.5
B: 13.2±0.3
C: 10.7±0.3
D: 10.7±0.3
E: 19.8min
F: 8.1±0.2
C1: 0.53mm^-1
Le: 57.8mm
Ae: 110mm^2
Ve: 6358mm^3
each set =2 ferrite halves + 1 bobbin
EE30 5+5 6+6pins Ferrite Cores
AL=4000±25%
core size(mm): (the 3rd picture)
A: 30.0±0.5
B: 13.2±0.3
C: 10.7±0.3
D: 10.7±0.3
E: 19.8min
F: 8.1±0.2
C1: 0.53mm^-1
Le: 57.8mm
Ae: 110mm^2
Ve: 6358mm^3
each set =2 ferrite halves + 1 bobbin
