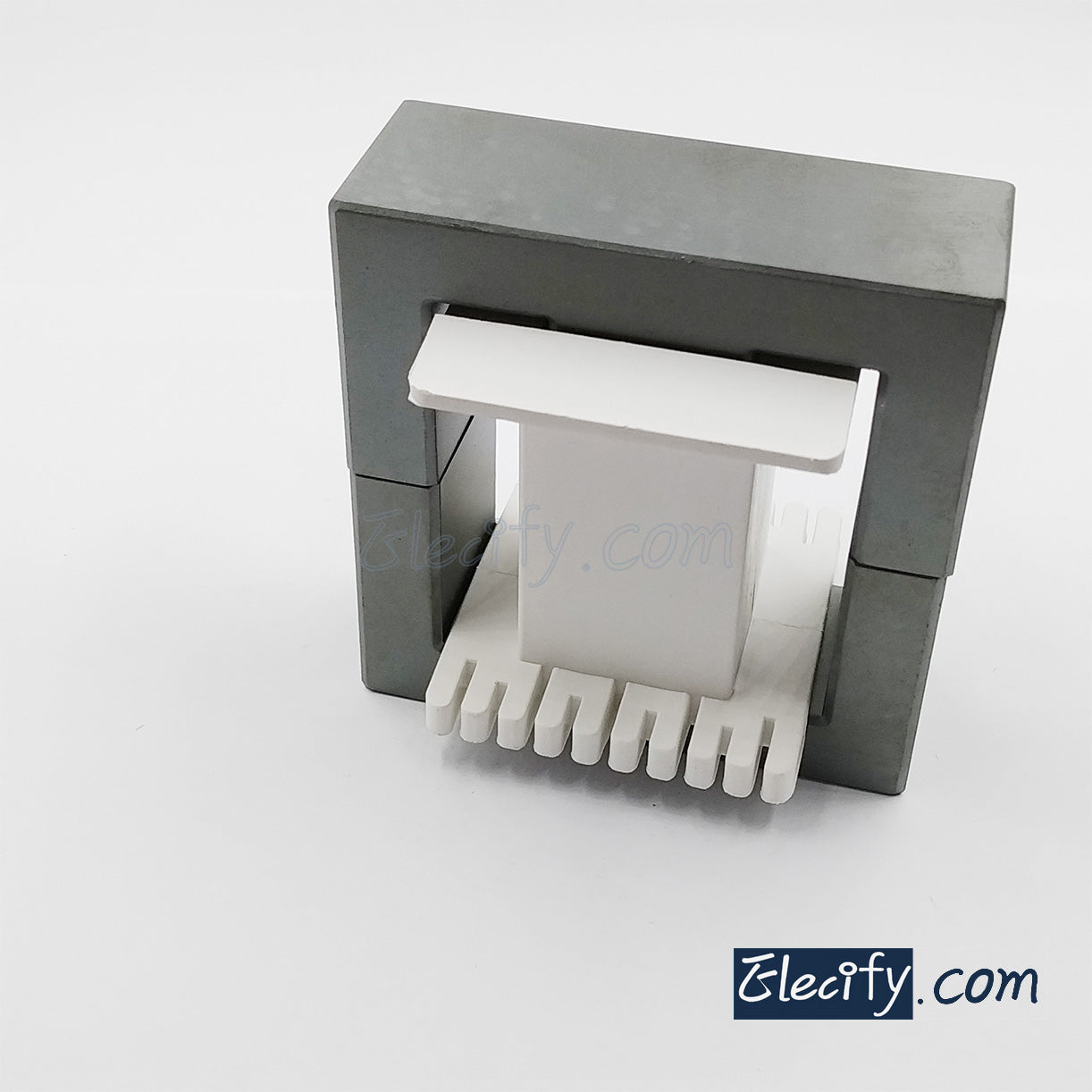

1set EE85 PC40 Ferrite Cores and bobbin 85mm
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
Material type: PC40 (TDK) = 3C90 (Ferroxcube) = N67 (EPCOS)
1set EE85 Ferrite Cores
AL=9500±25%

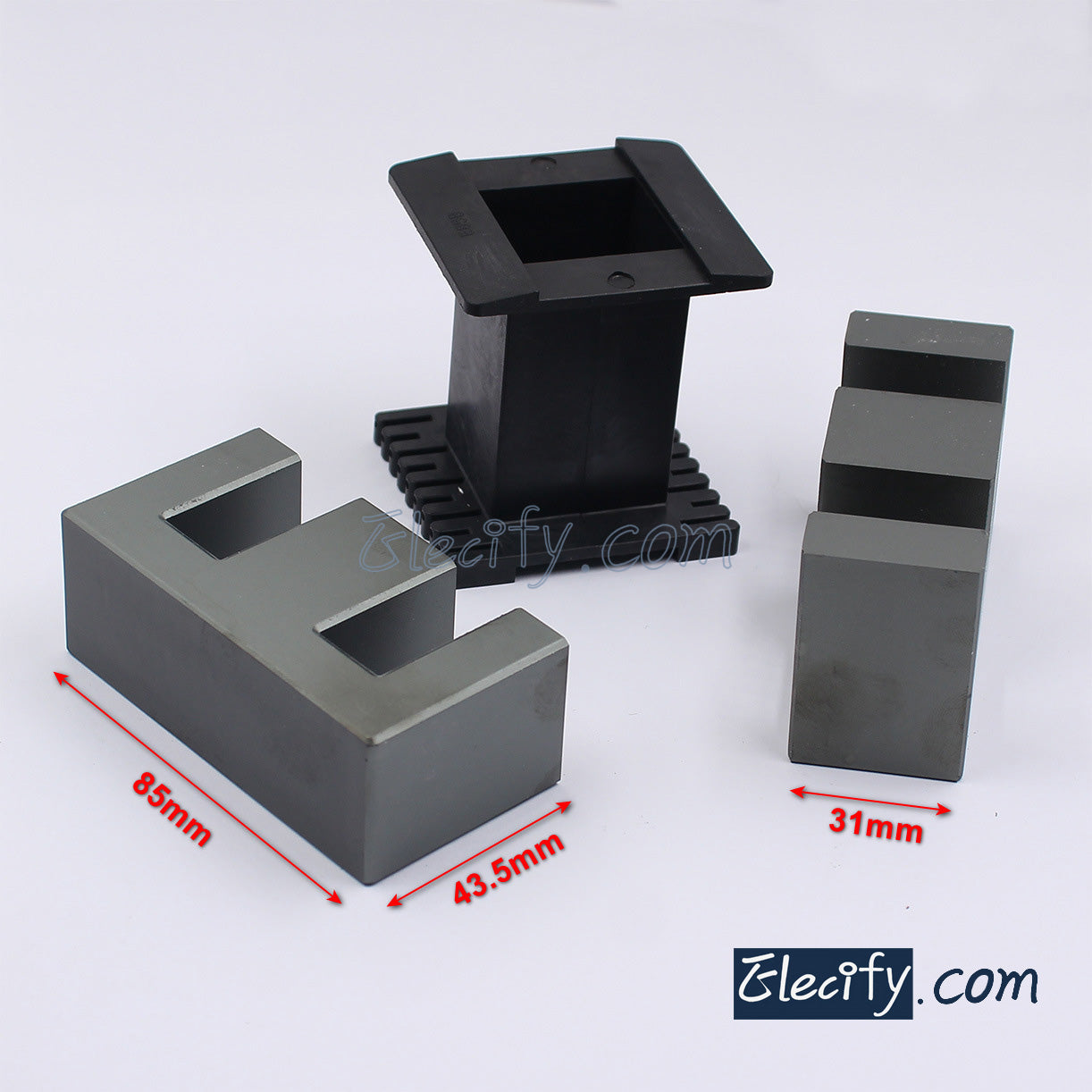

core size(mm): (the third picture)
A: 85.0±1.5
B: 43.5±0.5
C: 31.5±0.8
D: 26.5±0.6
E: 56.0min
F: 30.5±0.5
C1: 0.23mm^-1
Le: 191.2mm
Ae: 818mm^2
Ve: 173271mm^3

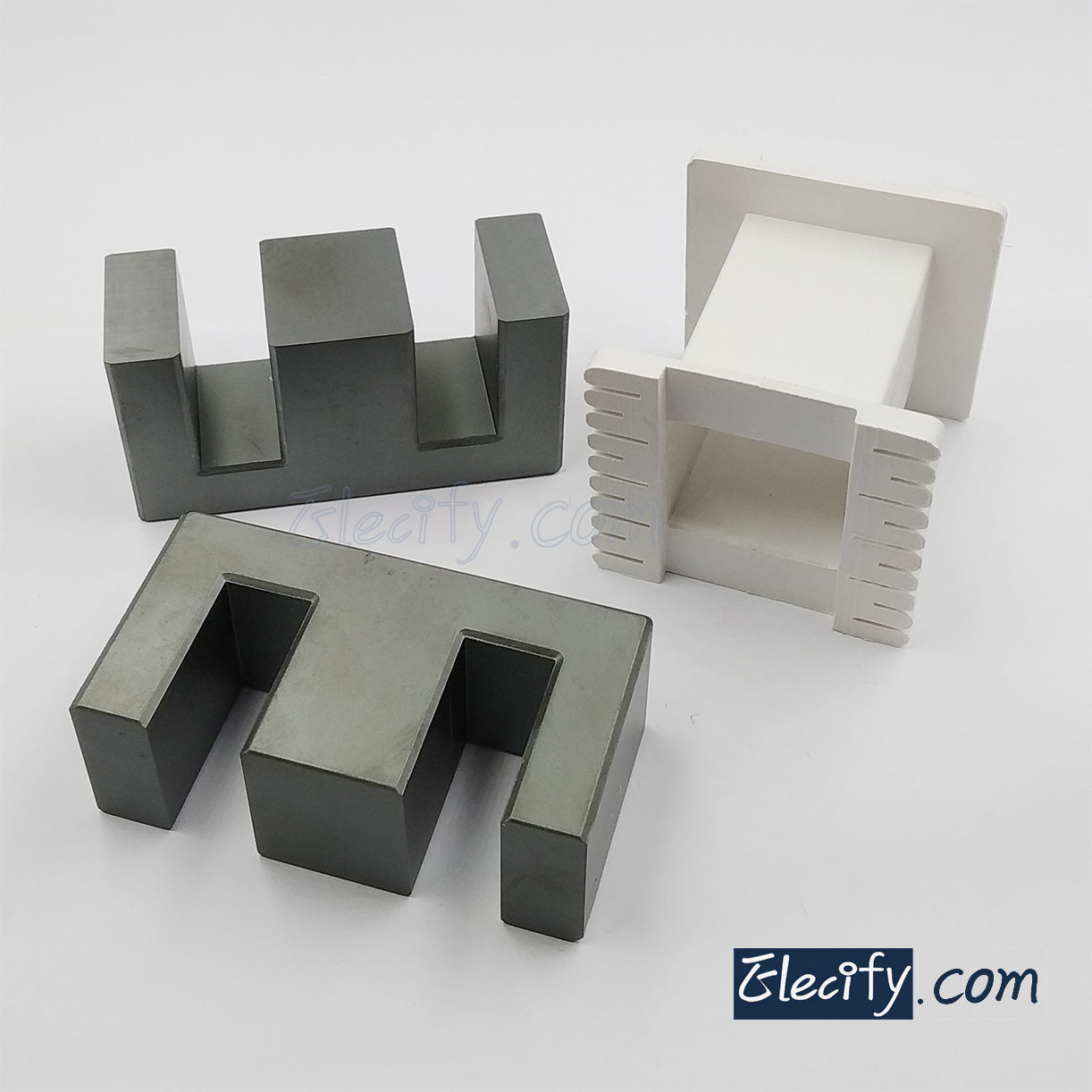

1SET =2 ferrite halves + 1 bobbin
