1set EE65 6+6pins PC40 Ferrite Cores and bobbin 65mm
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
Material type: PC40 (TDK) = 3C90 (Ferroxcube) = N67 (EPCOS)

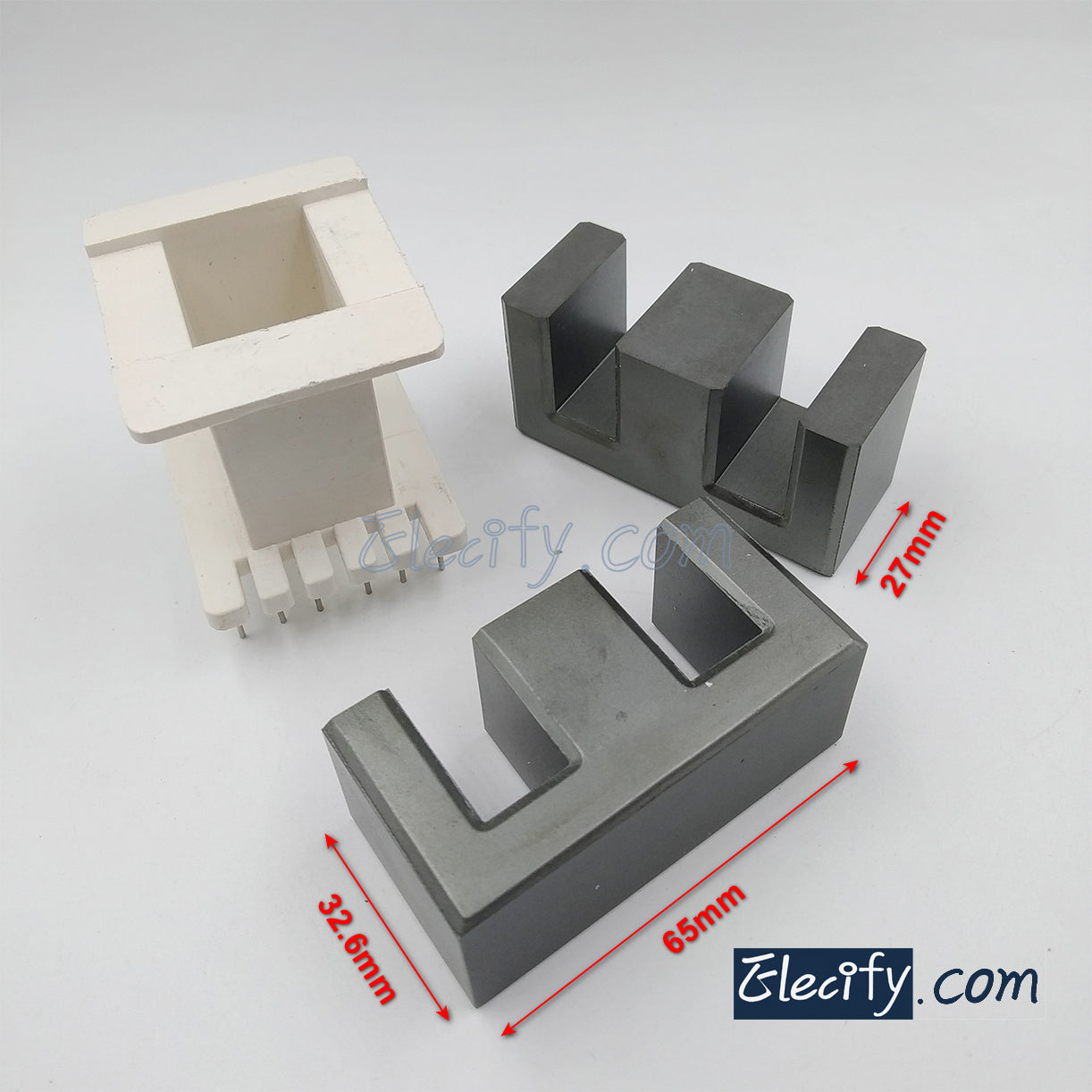

1set EE65 6+6pins Ferrite Cores
AL=7900±25%
core size(mm): (the third picture)
A: 65.4±1.5
B: 32.5±0.6
C: 27.0±0.3
D: 19.8±0.7
E: 44.2min
F: 22.6±0.5
C1: 0.274mm^-1
Le: 147mm
Ae: 540mm^2
Ve: 79000mm^3
1SET =2 ferrite halves + 1 bobbin
