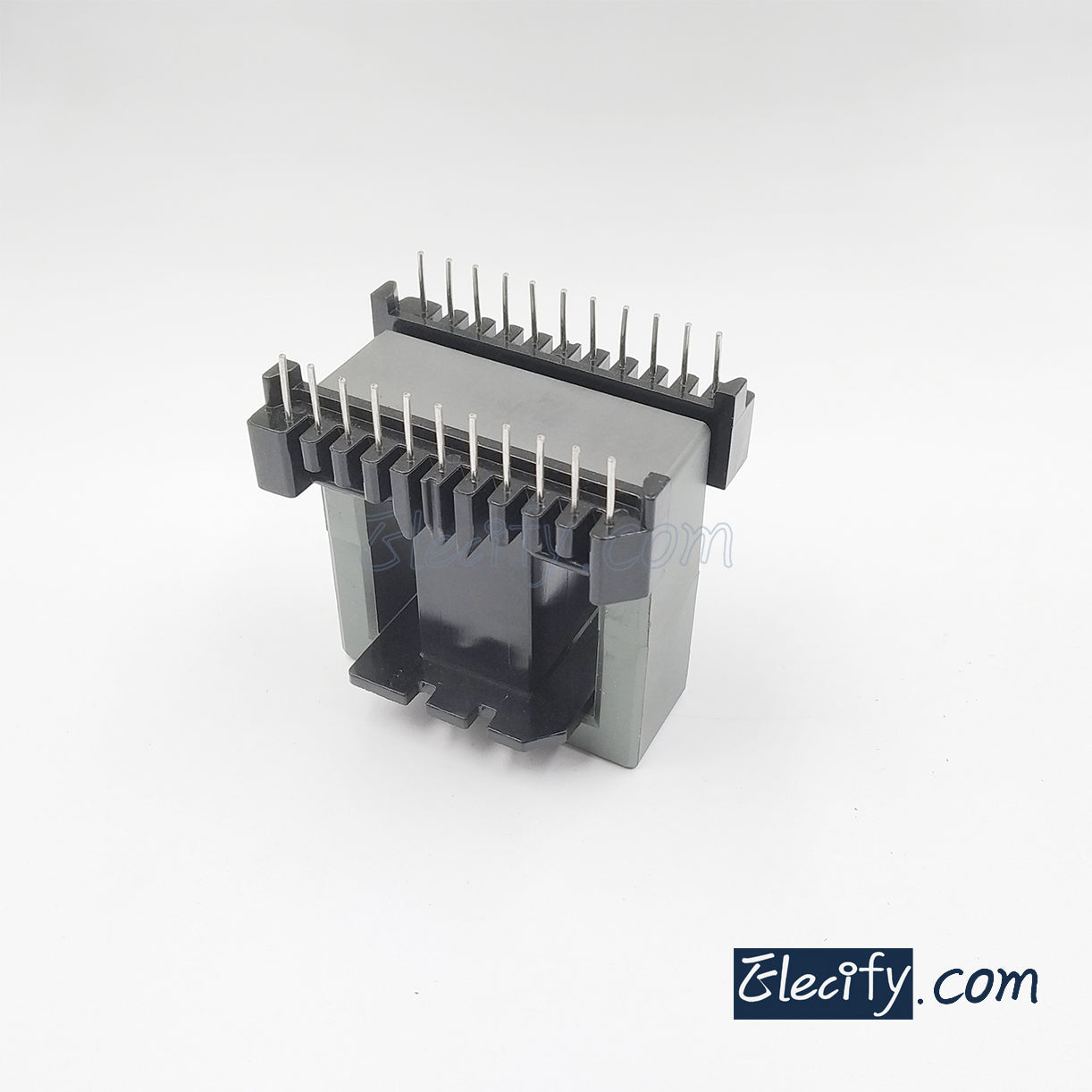

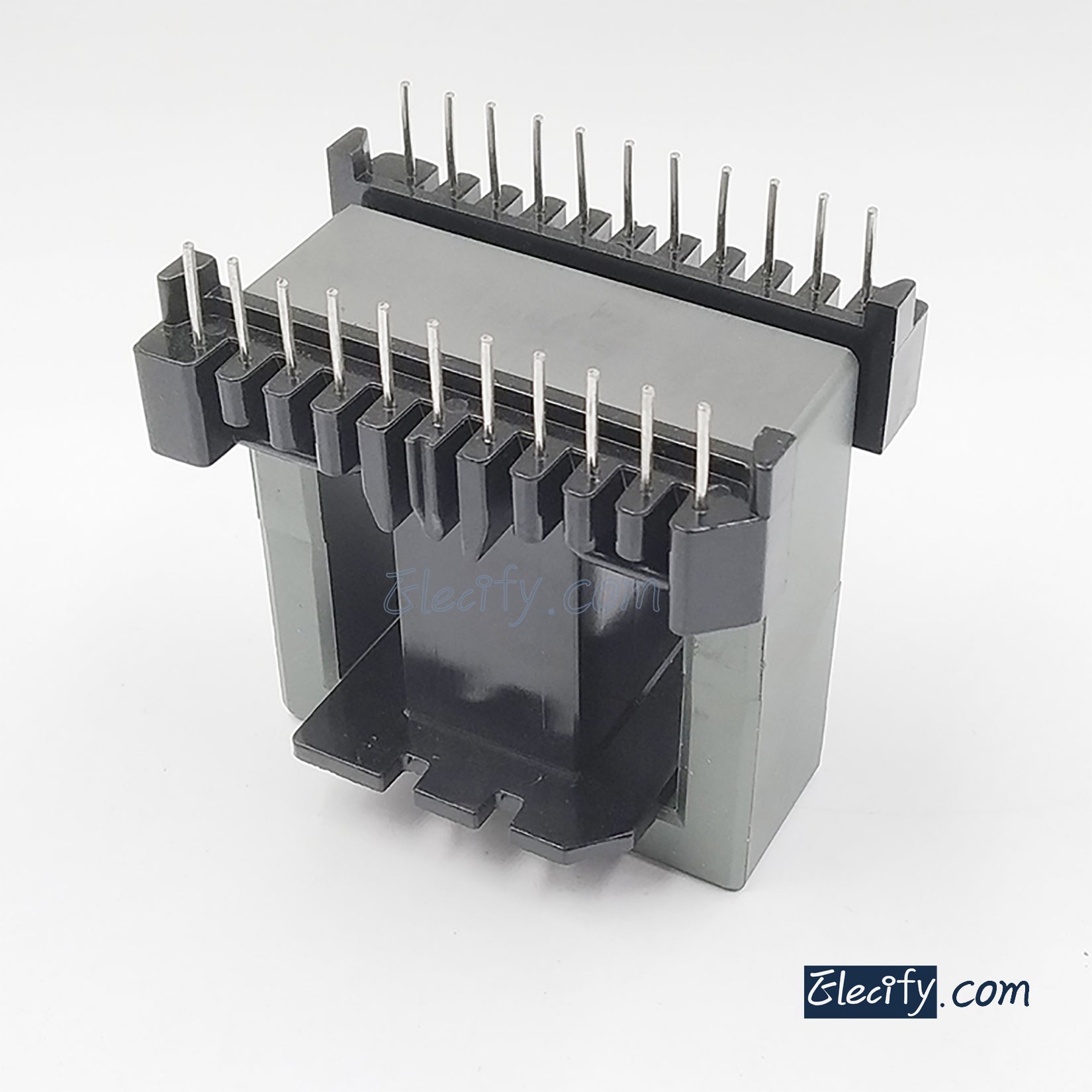

1set EE55B 11+11pins PC40 Ferrite Cores and bobbin 55mm

  • $4.70
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
EE55B 11+11pins PC40 Ferrite Core
AL=7100±25%

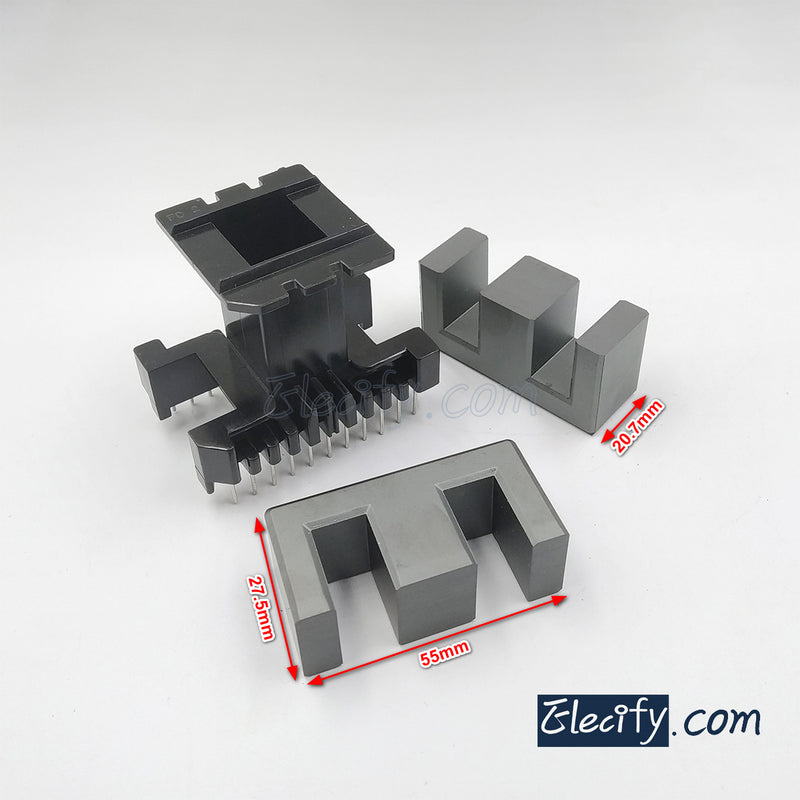

core size(mm): (the 2nd picture)
A:55.1±1.1
B:27.5±0.3
C:20.7±0.5
D:17.0±0.3
E:37.5min
F:18.8±0.3

C1: 0.35mm^-1
Le: 123mm
Ae: 354mm^2
Ve: 43542mm^3

1set =2 ferrite halves + 1 bobbin
