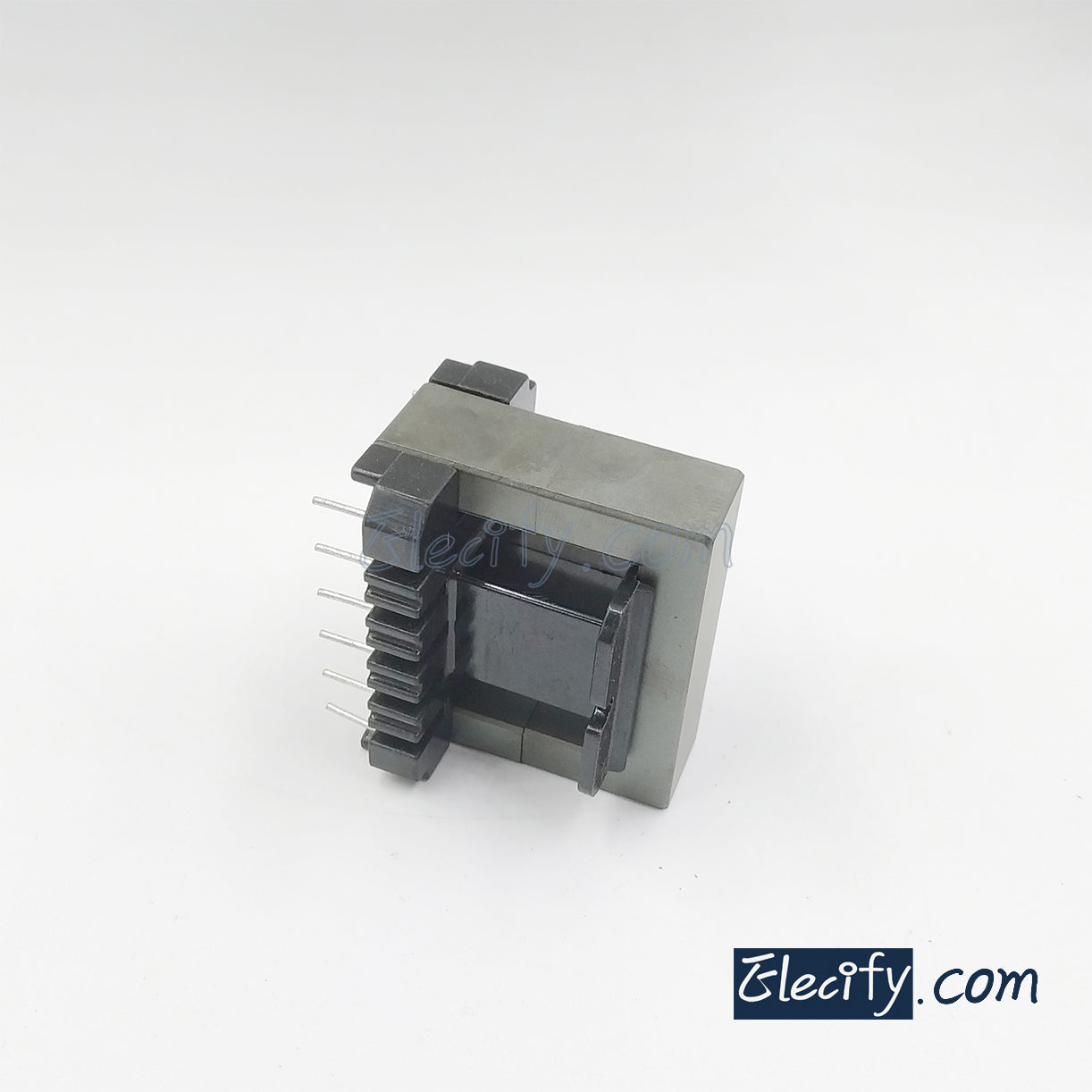

1set EE50 6+6pins Ferrite Cores bobbin, transformer core 50mm
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
Material type: PC40 (TDK) = 3C90 (Ferroxcube) = N67 (EPCOS)
1set EE50 6+6pins Ferrite Cores
AL=5400±25%

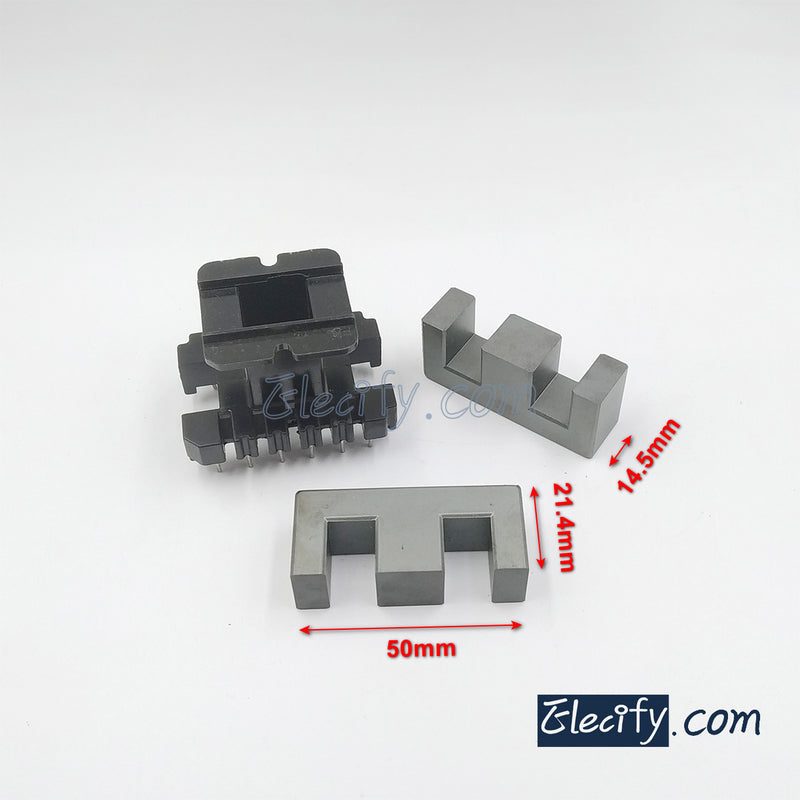

core size(mm): (the third picture)
A: 50.0±1.0
B: 21.4±0.3
C: 14.5±0.3
D: 14.5±0.3
E: 35±0.7
F: 12.8±0.3
C1: 0.43mm^-1
Le: 96.8mm
Ae: 225.7mm^2
Ve: 21850mm^3
1SET =2 ferrite halves + 1 bobbin
1set EE50 6+6pins Ferrite Cores
AL=5400±25%
core size(mm): (the third picture)
A: 50.0±1.0
B: 21.4±0.3
C: 14.5±0.3
D: 14.5±0.3
E: 35±0.7
F: 12.8±0.3
C1: 0.43mm^-1
Le: 96.8mm
Ae: 225.7mm^2
Ve: 21850mm^3
1SET =2 ferrite halves + 1 bobbin
