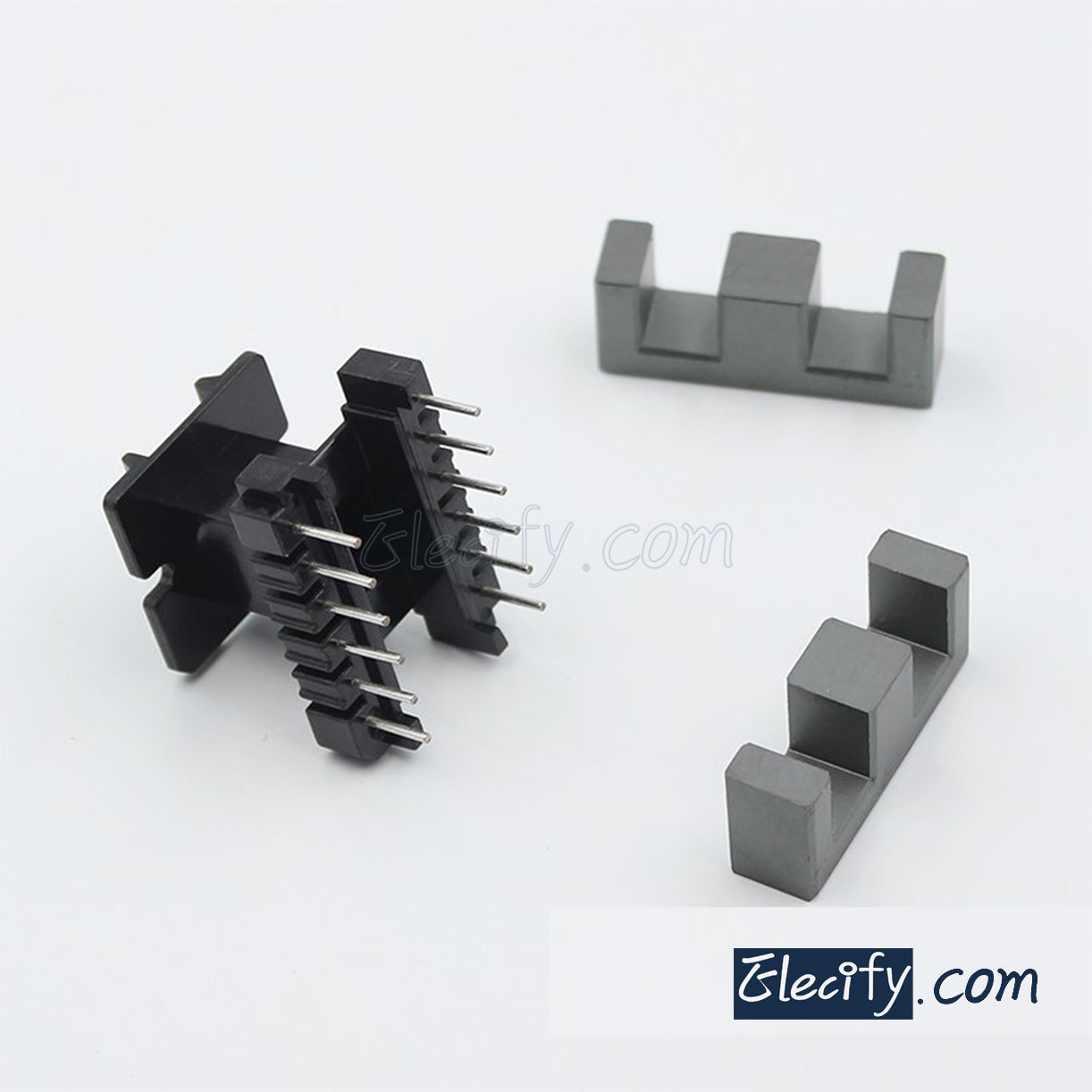

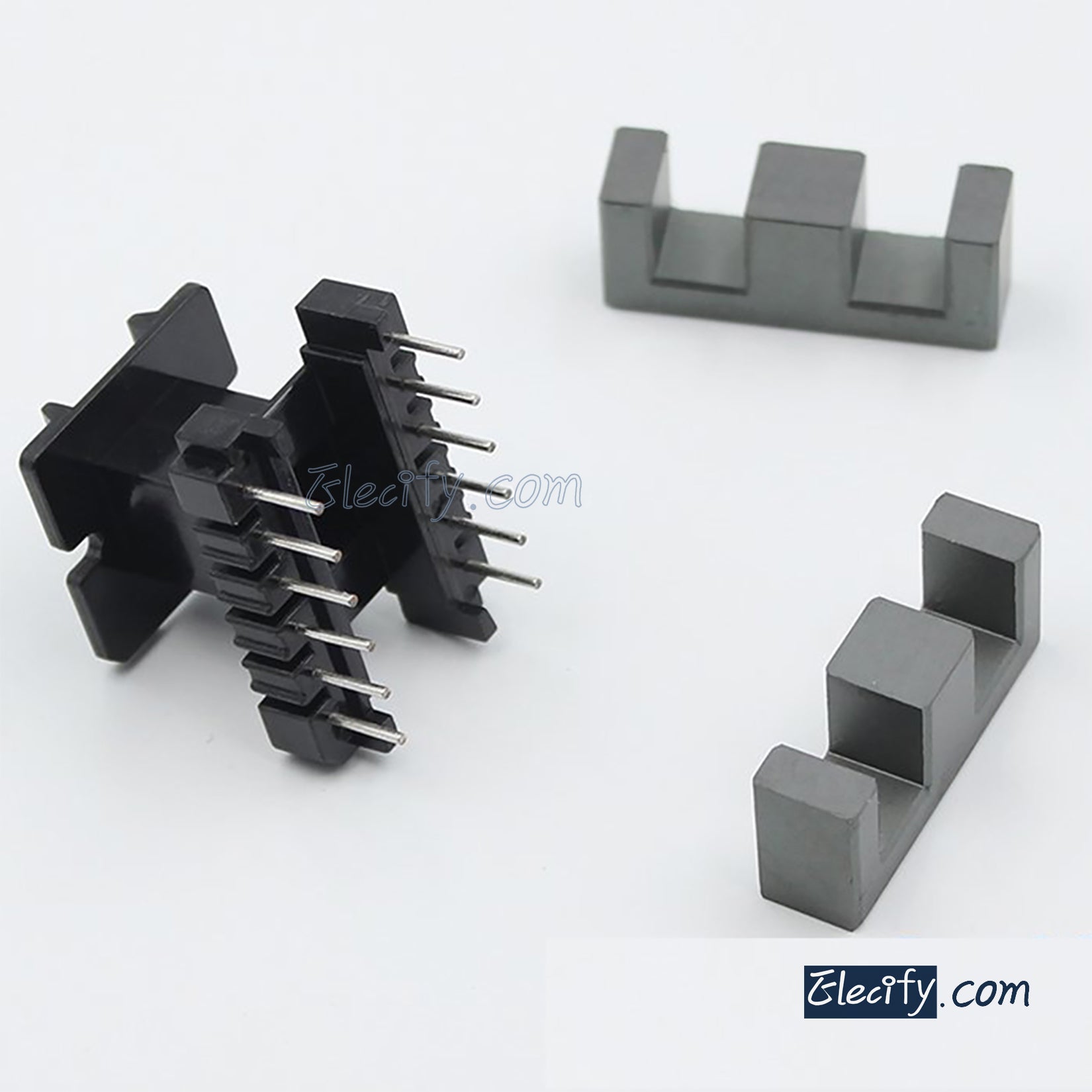

EE35 6+6pins PC40 Ferrite Cores and bobbin

  • $0.80
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

AL=3500±25%

 "E" core size(mm): (the third picture)
   A: 35.2±0.6
   B: 14.5±0.3
   C: 9.5±0.3
   D: 9.5±0.3
   E: 25.0min
   F: 10.0±0.3

C1: 0.7mm^-1
Le: 69.2mm
Ae: 98.6mm^2
Ve: 6820mm^3

each set =2 ferrite halves + 1 bobbin
