EE19W 5+5pins Ferrite Cores bobbin, transformer core, inductor coil

  • $0.50
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

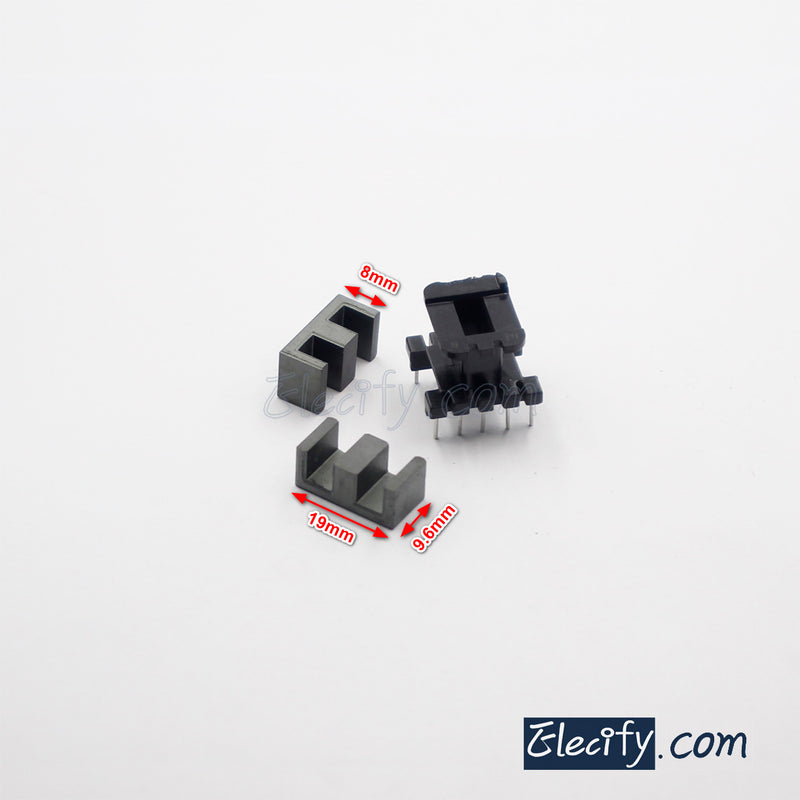

EE19W 5+5pins Ferrite Cores

AL=1900±25%
core size(mm): (the 3rd picture)
A: 19.5±0.4
B: 8.0±0.3
C: 9.6±0.3
D: 4.8±0.3
E: 14.0mm (min)
F: 5.6±0.2

C1: 1.05
Ae: 45.2
Le: 39.72
Ve: 1606.3


each set =2 ferrite halves + 1 bobbin
