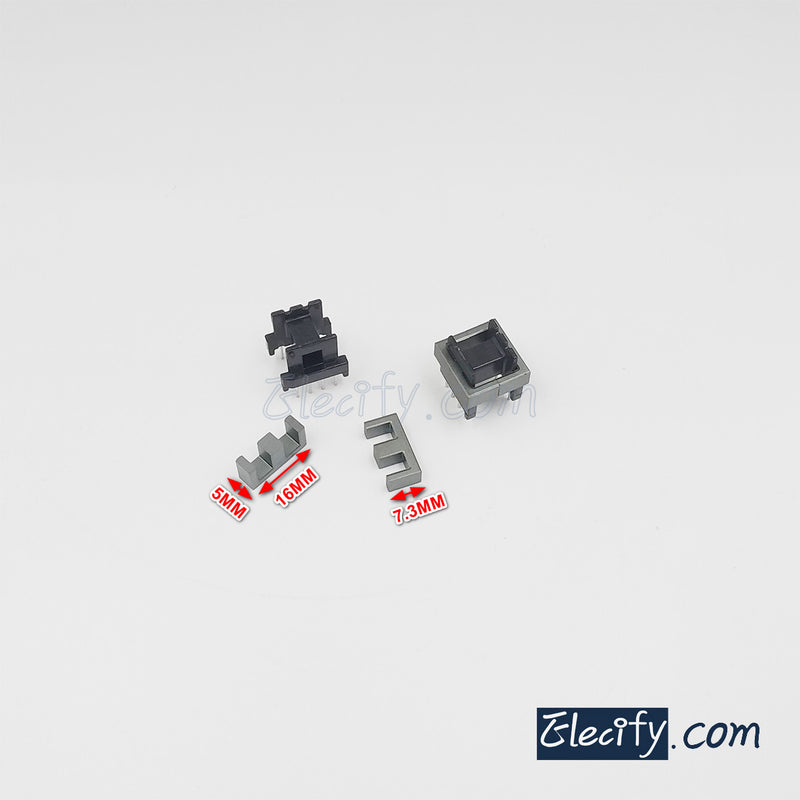

5set EE16 PC40 Ferrite Cores and horizontal bobbin
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
EE16 Ferrite Cores
AL=1300±25%
core size(mm): (the 2nd picture)
A: 16.0±0.3
B: 7.3±0.3
C: 5.0±0.3
D: 4.0±0.3
E: 11.8min
F: 5.2±0.2
C1: 1.8mm^-1
Le: 34.8mm
Ae: 19mm^2
Ve: 670mm^3
