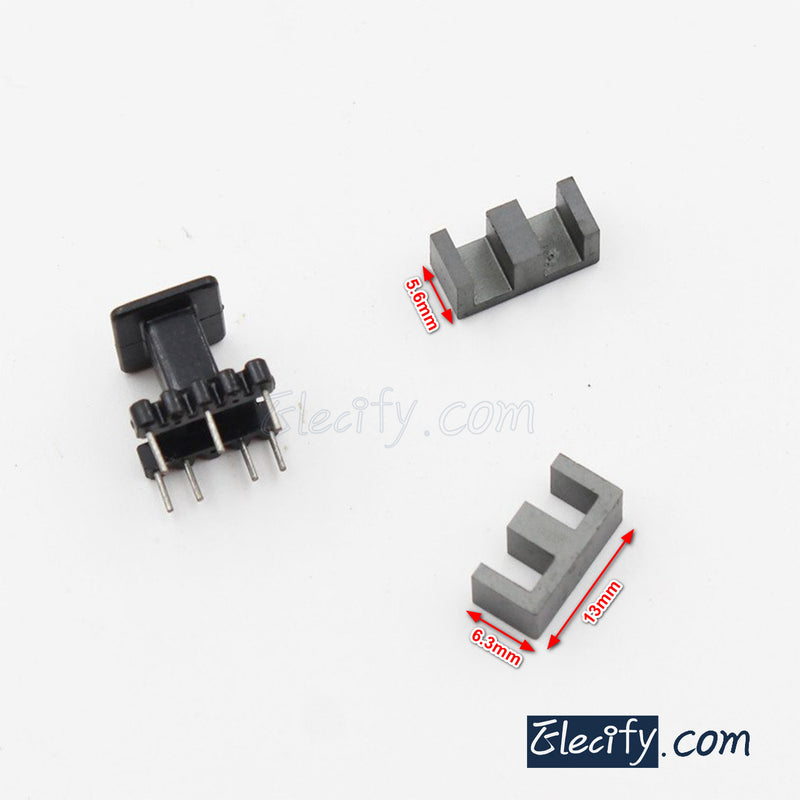

5set EE13 3+4pins Ferrite Cores and bobbin, PC40
We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!
EE13 3+4pins Ferrite Cores
AL=1000±25%
core size(mm): (the 2nd picture)
A: 13.0±0.3
B: 6.0±0.3
C: 5.9±0.3
D: 2.6±0.2
E: 10.2±0.3
F: 4.6±0.2
C1: 1.88
Le: 30.1
Ae: 16.0
Ve: 487.0
AL=1000±25%
core size(mm): (the 2nd picture)
A: 13.0±0.3
B: 6.0±0.3
C: 5.9±0.3
D: 2.6±0.2
E: 10.2±0.3
F: 4.6±0.2
C1: 1.88
Le: 30.1
Ae: 16.0
Ve: 487.0
