EE10 4+4pins Ferrite Cores and bobbin

  • $0.25
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

EE10 4+4pins Ferrite Cores

AL=900±25%

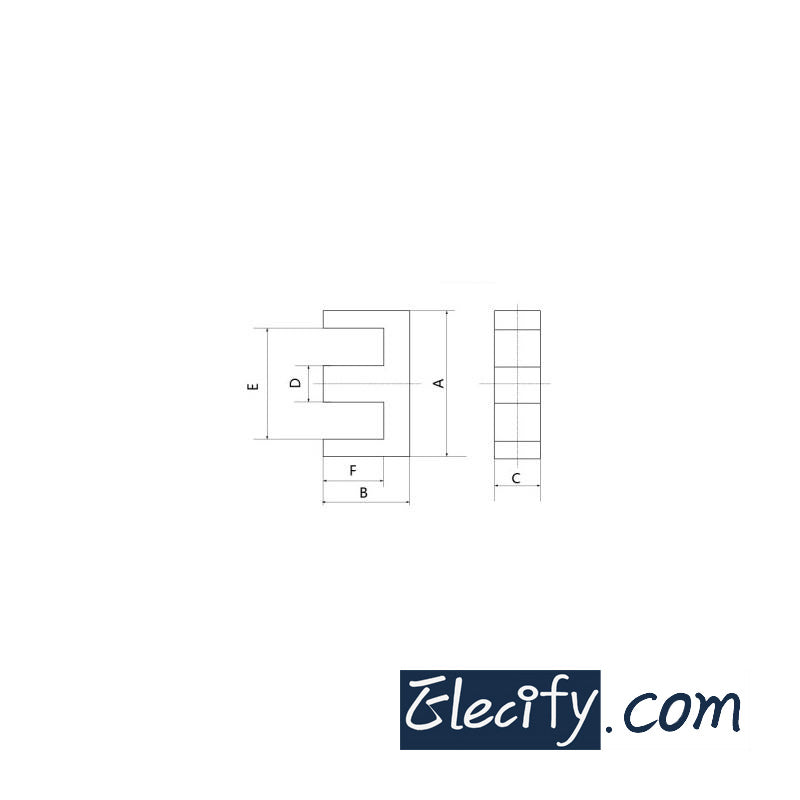

core size(mm): (the 2nd picture)
A: 10.2±0.3
B: 5.5±0.1
C: 4.8±0.2
D: 2.5±0.2
E: 7.6min
F: 4.2±0.2

C1: 2.16mm^-1
Le: 26.1mm
Ae: 12.1mm^2
Ve: 315mm^3

each set = 2 ferrite halves + 1 bobbin
