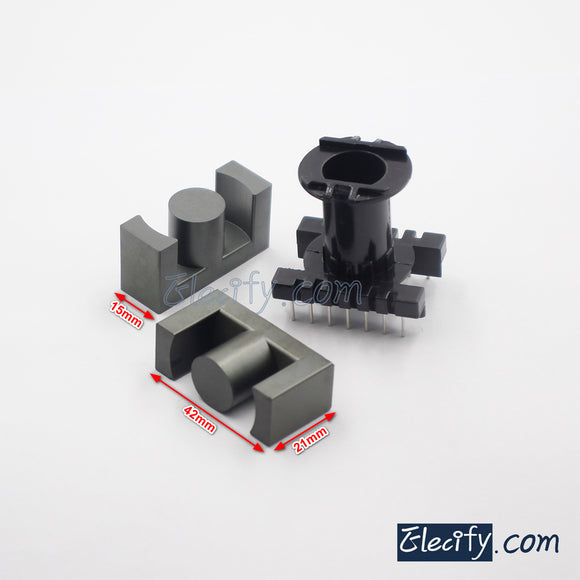

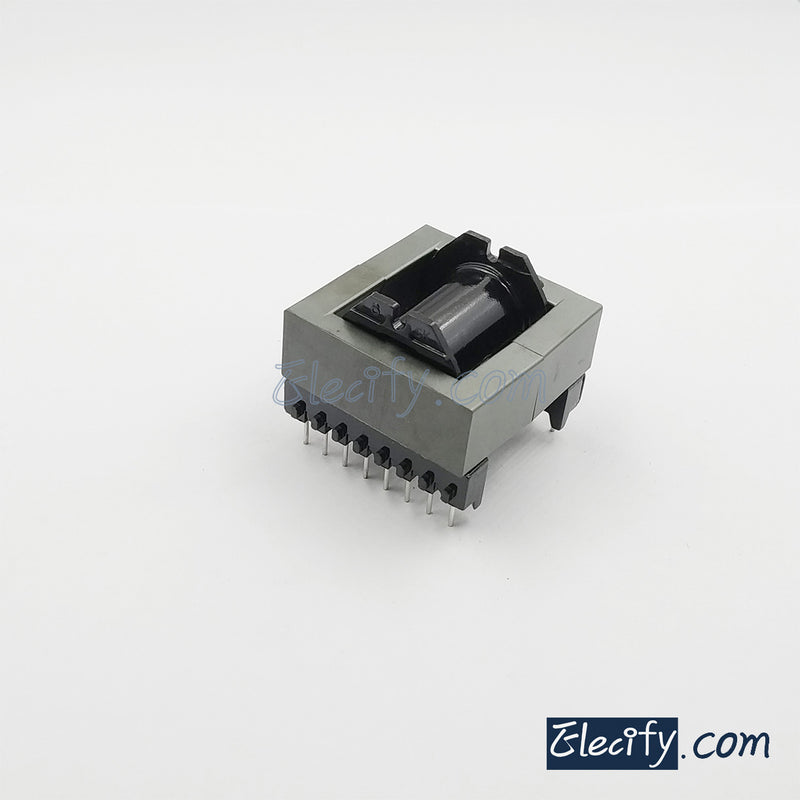

1set EC42 PC40 Ferrite Cores and bobbin

  • $2.00
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

EC42 Ferrite Cores
AL=5000±25%

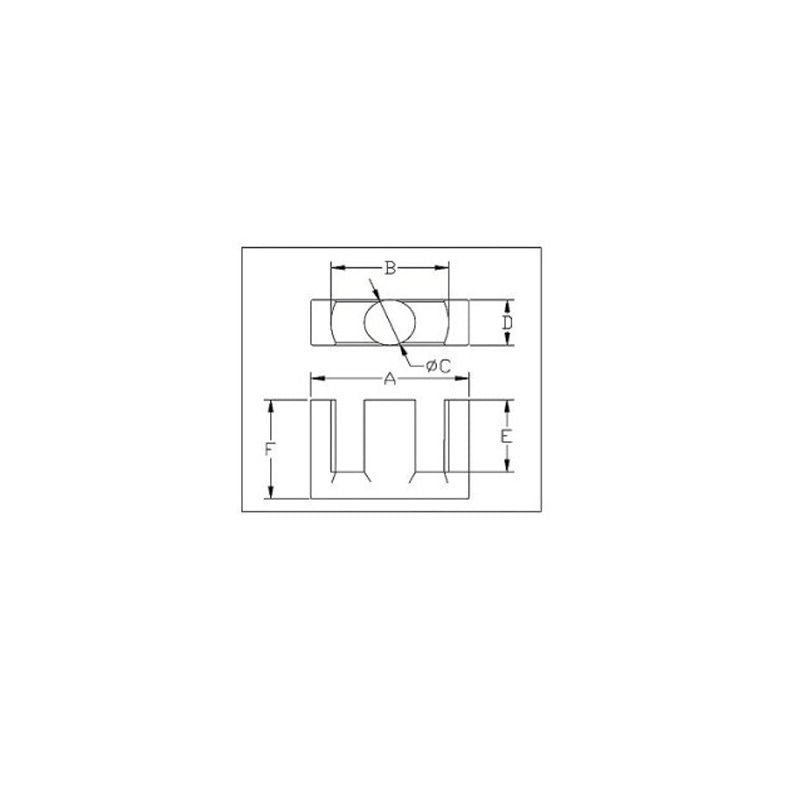

 core size(mm): (the third picture)
   A: 42.0±0.7
   B: 20.5±0.3
   C: 14.8±0.3
   D: 14.8±0.3
   E: 30.8min
   F: 14.8±0.3

Material: PC40

C1: 0.546mm^-1
Le:  100.5mm
Ae: 138.8mm^2
Ve: 20005mm^3

 each set =2 ferrite halves + 1 bobbin
