5pcs RM14 6+6pins Ferrite Cores bobbin, transformer core

  • $7.00
Shipping calculated at checkout.


We use the Polyethylene foamed sheet to protect the ferrite cores and bobbins, then use the air column, don't worry!

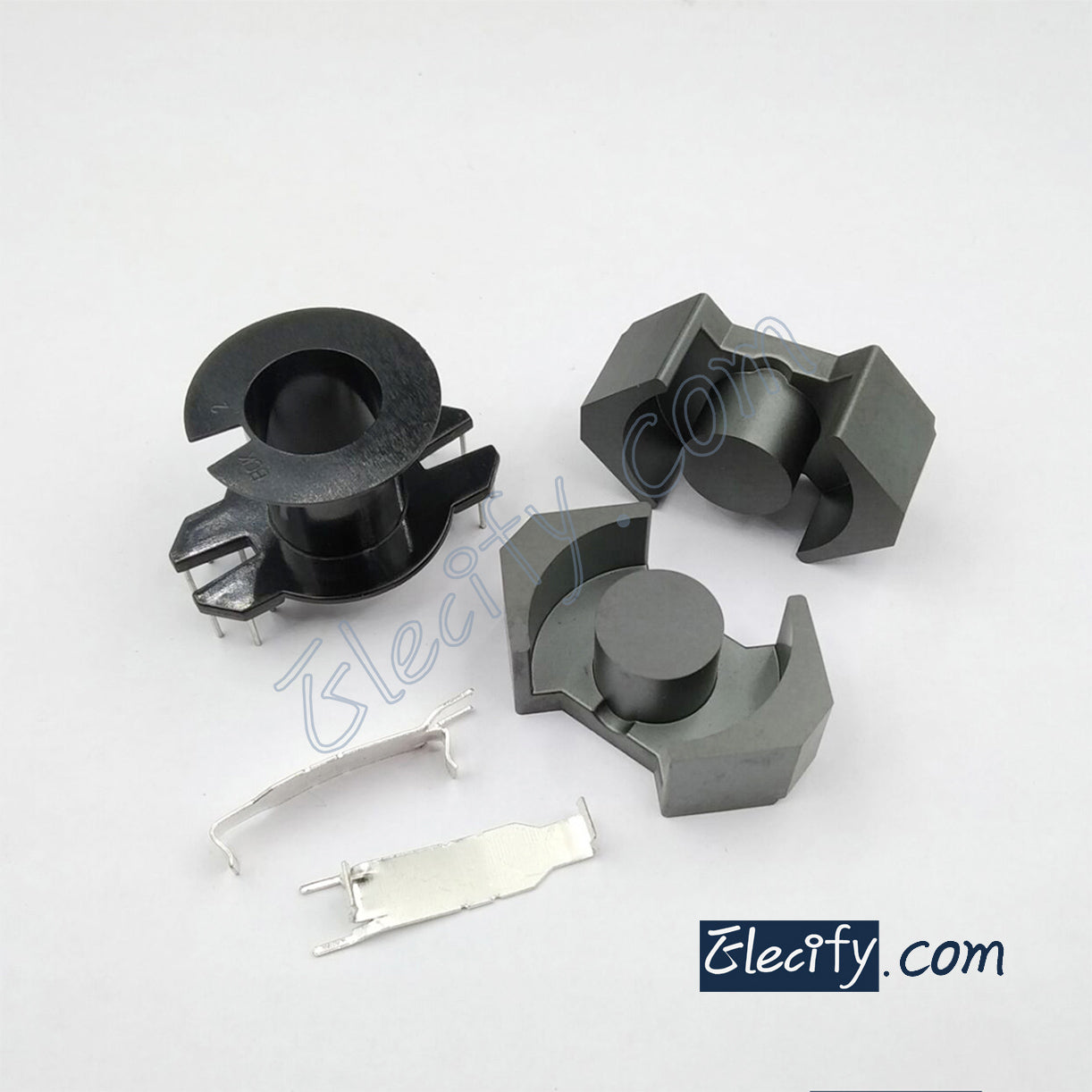

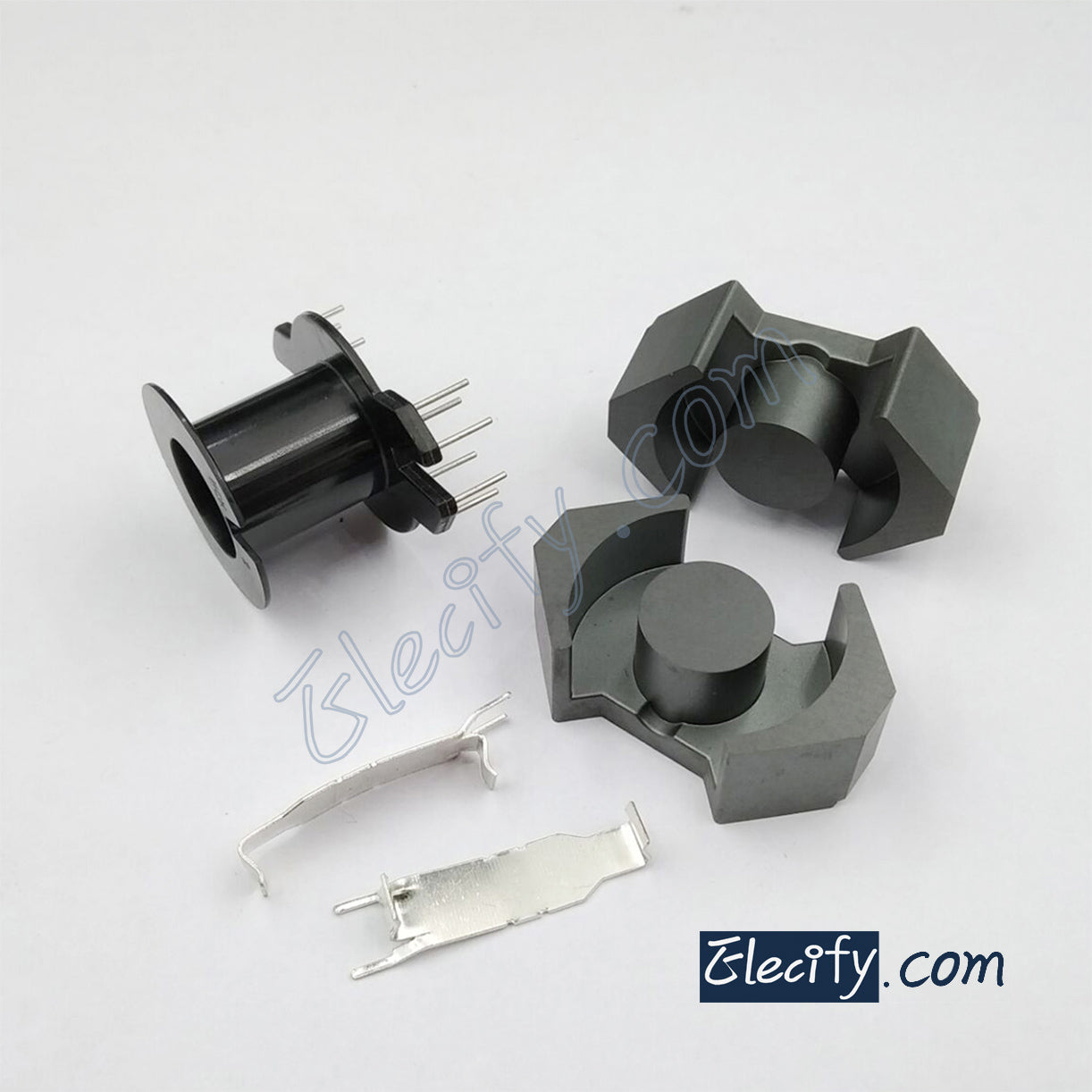

RM14 6+6pins Ferrite Cores

AL=6000±25%

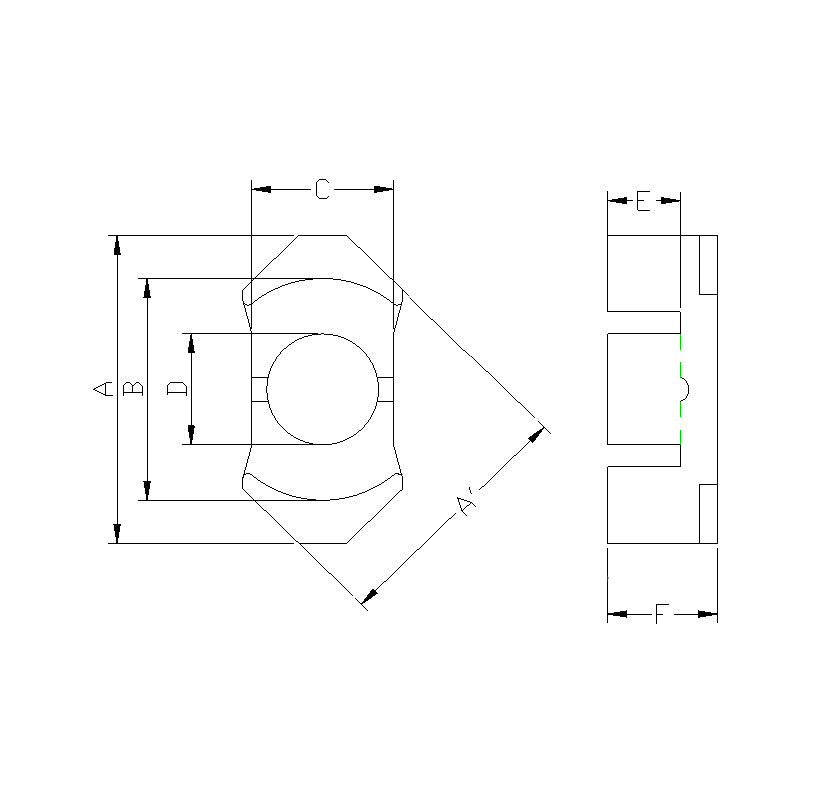

 core size(mm): (the 3rd picture)
   A' : 34.20±0.50
   A: 41.60±0.60
   B: 29.50±0.50
   C: 18.70±0.30
   D: 14.75±0.25
   E: 10.80±0.15
   F: 15.1±0.15

   C1: 0.4
   Le: 75.38
   Ae: 178.0
   Ve: 12600



Q'ty: 5set
